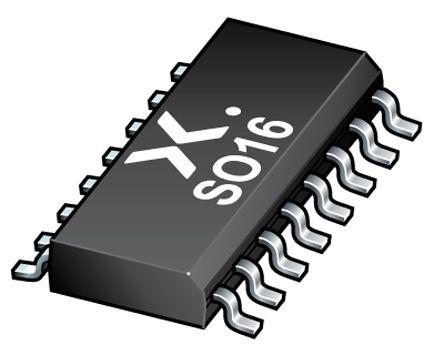

NXP HEF4052BT,653, Multiplexer/Demultiplexer Dual 4:1, 3 → 15 V, 16-Pin SOIC

HEF4052BT-653 NXP HEF4052BT,653, Multiplexer/Demultiplexer Dual 4:1, 3 → 15 V, 16-Pin SOIC
NXP

Product Information

Dimensions:
10 x 4 x 1.45mm
Width:
4mm
Power Supply Type:
Single
Number of Channels per Chip:
5
Package Type:
SOIC
Propagation Delay Time:
300 (Low to High) ns, 305 (High to Low) ns
Configuration:
Dual 4:1
Maximum Operating Temperature:
+125 °C
Number of Outputs per Element:
4
Multiplexer Architecture:
2:4
Output Signal Type:
Single Ended
Input Signal Type:
Differential
Typical Single Supply Voltage:
3 → 15 V
Number of Inputs per Element:
2
Pin Count:
16
Mounting Type:
Surface Mount
Maximum Power Dissipation:
500 mW
Length:
10mm
Height:
1.45mm
Minimum Operating Temperature:
-40 °C
Switch Type:
Analogue Multiplexer
RoHs Compliant
Checking for live stock

This is Multiplexer/Demultiplexer Dual 4:1 3 → 15 V 16-Pin SOIC manufactured by NXP. The manufacturer part number is HEF4052BT,653. The given dimensions of the product include 10 x 4 x 1.45mm. Furthermore, the product is 4mm wide. It is a type of single power supply. It comprises 5 channels per chip. The package is a sort of soic. It has 300 (low to high) ns, 305 (high to low) ns of propagation delay time . The product is available in dual 4:1 configuration. It has a maximum operating temperature of +125 °c. It includes 4 outputs per element . However, it has 2:4 multiplexer architecture . The output signal is a kind of single ended. The input signal is a kind of differential signal. It has a typical single supply voltage of 3 → 15 v. Moreover, the product has 2 input(s) per element . It contains 16 pins. The product is available in surface mount configuration. Provides up to 500 mw maximum power dissipation. Its accurate length is 10mm. In addition, the height is 1.45mm. Whereas, the minimum operating temperature of the product is -40 °c. Quality product with a analogue multiplexer switch type.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search HEF4052BT,653 on website for other similar products.
We accept all major payment methods for all products including ET16929708. Please check your shopping cart at the time of order.
You can order NXP brand products with HEF4052BT,653 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiplexer Switch ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP HEF4052BT,653, Multiplexer/Demultiplexer Dual 4:1, 3 → 15 V, 16-Pin SOIC. You can also check on our website or by contacting our customer support team for further order details on NXP HEF4052BT,653, Multiplexer/Demultiplexer Dual 4:1, 3 → 15 V, 16-Pin SOIC.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16929708 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NXP" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16929708.
Yes. We ship HEF4052BT,653 Internationally to many countries around the world.
