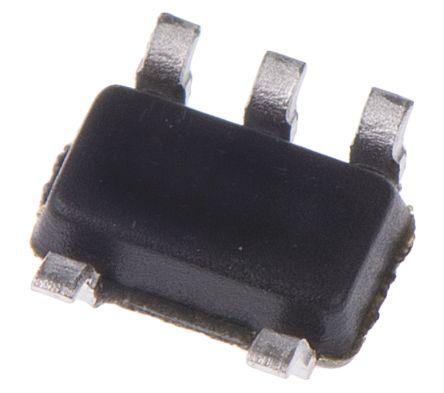

Analog Devices ADG701BRJZ-500RL7, Analogue Switch Single SPST, 5 V, 5-Pin SOT-23

ADG701BRJZ-500RL7 Analog Devices , Analogue Switch Single SPST, 5 V, 5-Pin SOT-23
ADG701BRJZ-500RL7
Analog Devices

Product Information

Number of Outputs per Element:
1
Output Signal Type:
Single Ended
Dimensions:
2.9 x 1.6 x 1.3mm
Mounting Type:
Surface Mount
Input Signal Type:
Single Ended
Power Supply Type:
Single
Maximum Power Dissipation:
0.01 μW
Number of Channels per Chip:
1
Multiplexer Architecture:
1:1
Height:
1.3mm
Typical Single Supply Voltage:
5 V
Width:
1.6mm
Length:
2.9mm
Package Type:
SOT-23
Minimum Operating Temperature:
-40 °C
Number of Inputs per Element:
1
Configuration:
Single SPST
Maximum Operating Temperature:
+85 °C
Pin Count:
5
Switch Type:
Analogue
RoHs Compliant
Checking for live stock

This is Analogue Switch Single SPST 5 V 5-Pin SOT-23 manufactured by Analog Devices. The manufacturer part number is ADG701BRJZ-500RL7. It includes 1 outputs per element . The output signal is a kind of single ended. The given dimensions of the product include 2.9 x 1.6 x 1.3mm. The product is available in surface mount configuration. The input signal is a kind of single ended signal. It is a type of single power supply. Provides up to 0.01 μw maximum power dissipation. It comprises 1 channels per chip. However, it has 1:1 multiplexer architecture . In addition, the height is 1.3mm. It has a typical single supply voltage of 5 v. Furthermore, the product is 1.6mm wide. Its accurate length is 2.9mm. The package is a sort of sot-23. Whereas, the minimum operating temperature of the product is -40 °c. Moreover, the product has 1 input(s) per element . The product is available in single spst configuration. It has a maximum operating temperature of +85 °c. It contains 5 pins. Quality product with a analogue switch type.

pdf icon
ADG701/ADG702 CMOS Low Voltage 2 Ω SPST Switches Data Sheet(Technical Reference)
