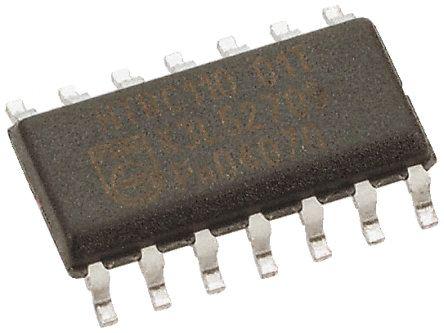

NXP PCA9543AD, Multiplexer Dual 2:1 Bus, 2.3 → 5.5 V, 14-Pin SOIC

Enrgtech Part No: ET14100797
|
Manufacturer Part No:
PCA9543AD
|
Manufacturer: NXP

PCA9543AD NXP , Multiplexer Dual 2:1 Bus, 2.3 → 5.5 V, 14-Pin SOIC

Product Information

Dimensions:

8.75 x 4 x 1.45mm

Width:

4mm

Power Supply Type:

Single

Number of Channels per Chip:

Package Type:

SOIC

Configuration:

Dual 2:1

Maximum Operating Temperature:

+85 °C

Number of Outputs per Element:

Multiplexer Architecture:

2:1

Output Signal Type:

Differential

Input Signal Type:

Single Ended

Typical Single Supply Voltage:

2.3 → 5.5 V

Checking for live stock

This is Multiplexer Dual 2:1 Bus 2.3 → 5.5 V 14-Pin SOIC manufactured by NXP. The manufacturer part number is PCA9543AD. The given dimensions of the product include 8.75 x 4 x 1.45mm. Furthermore, the product is 4mm wide. It is a type of single power supply. It comprises 2 channels per chip. The package is a sort of soic. The product is available in dual 2:1 configuration. It has a maximum operating temperature of +85 °c. It includes 1 outputs per element . However, it has 2:1 multiplexer architecture . The output signal is a kind of differential. The input signal is a kind of single ended signal. It has a typical single supply voltage of 2.3 → 5.5 v. Moreover, the product has 2 input(s) per element . It contains 14 pins. The product is available in surface mount configuration. Provides up to 400 mw maximum power dissipation. Its accurate length is 8.75mm. In addition, the height is 1.45mm. Whereas, the minimum operating temperature of the product is -40 °c. Quality product with a bus switch type.

PCA9543A/43B 2-channel I2C-bus switch with interrupt logic and reset datasheet(Technical Reference)
