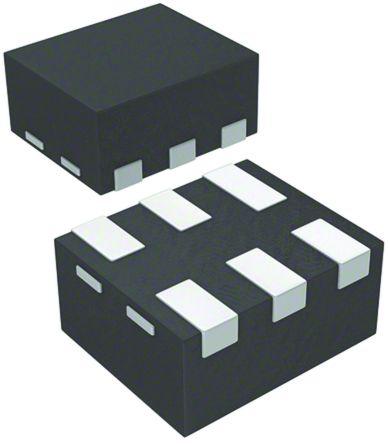

Vishay DG3157ADN-T1-E4, Analogue Switch Single SPDT, 1.65 → 5.5 V, 6-Pin QFN

DG3157ADN-T1-E4 Vishay , Analogue Switch Single SPDT, 1.65 → 5.5 V, 6-Pin QFN
Vishay

Product Information

Dimensions:
1.25 x 1.05 x 0.55mm
Width:
1.05mm
Power Supply Type:
Single
Number of Channels per Chip:
1
Package Type:
QFN
Configuration:
Single SPDT
Maximum Operating Temperature:
+85 °C
Number of Outputs per Element:
2
Multiplexer Architecture:
1:2
Output Signal Type:
Single Ended
Input Signal Type:
Single Ended
Typical Single Supply Voltage:
1.65 → 5.5 V
Number of Inputs per Element:
1
Pin Count:
6
Mounting Type:
Surface Mount
Maximum Power Dissipation:
160 mW
Length:
1.25mm
Height:
0.55mm
Minimum Operating Temperature:
-40 °C
Switch Type:
Analogue
RoHs Compliant
Checking for live stock

This is Analogue Switch Single SPDT 1.65 → 5.5 V 6-Pin QFN manufactured by Vishay. The manufacturer part number is DG3157ADN-T1-E4. The given dimensions of the product include 1.25 x 1.05 x 0.55mm. Furthermore, the product is 1.05mm wide. It is a type of single power supply. It comprises 1 channels per chip. The package is a sort of qfn. The product is available in single spdt configuration. It has a maximum operating temperature of +85 °c. It includes 2 outputs per element . However, it has 1:2 multiplexer architecture . The output signal is a kind of single ended. The input signal is a kind of single ended signal. It has a typical single supply voltage of 1.65 → 5.5 v. Moreover, the product has 1 input(s) per element . It contains 6 pins. The product is available in surface mount configuration. Provides up to 160 mw maximum power dissipation. Its accurate length is 1.25mm. In addition, the height is 0.55mm. Whereas, the minimum operating temperature of the product is -40 °c. Quality product with a analogue switch type.

pdf icon
DG3157A, DG3157B, Low Voltage, 300MHz - 3dB Bandwidth, SPDT Analog Switch with Power Down Protection(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship DG3157ADN-T1-E4 Internationally to many countries around the world.
Yes. You can also search DG3157ADN-T1-E4 on website for other similar products.
We accept all major payment methods for all products including ET14030789. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14030789 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14030789.
You can order Vishay brand products with DG3157ADN-T1-E4 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Multiplexer Switch ICs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay DG3157ADN-T1-E4, Analogue Switch Single SPDT, 1.65 → 5.5 V, 6-Pin QFN. You can also check on our website or by contacting our customer support team for further order details on Vishay DG3157ADN-T1-E4, Analogue Switch Single SPDT, 1.65 → 5.5 V, 6-Pin QFN.
