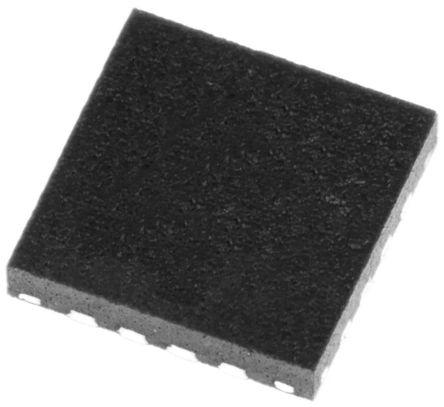

Vishay DG2018DN-T1-E4, Analogue Switch Dual DPDT, 1.8 → 5.5 V, 16-Pin QFN

DG2018DN-T1-E4 Vishay , Analogue Switch Dual DPDT, 1.8 → 5.5 V, 16-Pin QFN
DG2018DN-T1-E4
Vishay

Product Information

Dimensions:
3 x 3 x 1mm
Width:
3mm
Power Supply Type:
Single
Number of Channels per Chip:
2
Package Type:
QFN
Configuration:
Dual DPDT
Maximum Operating Temperature:
+85 °C
Number of Outputs per Element:
2
Multiplexer Architecture:
2:2
Output Signal Type:
Single Ended
Input Signal Type:
Single Ended
Typical Single Supply Voltage:
1.8 → 5.5 V
Number of Inputs per Element:
2
Pin Count:
16
Mounting Type:
Surface Mount
Maximum Power Dissipation:
850 mW
Length:
3mm
Height:
1mm
Minimum Operating Temperature:
-40 °C
Switch Type:
Analogue
RoHs Compliant
Checking for live stock

This is Analogue Switch Dual DPDT 1.8 → 5.5 V 16-Pin QFN manufactured by Vishay. The manufacturer part number is DG2018DN-T1-E4. The given dimensions of the product include 3 x 3 x 1mm. Furthermore, the product is 3mm wide. It is a type of single power supply. It comprises 2 channels per chip. The package is a sort of qfn. The product is available in dual dpdt configuration. It has a maximum operating temperature of +85 °c. It includes 2 outputs per element . However, it has 2:2 multiplexer architecture . The output signal is a kind of single ended. The input signal is a kind of single ended signal. It has a typical single supply voltage of 1.8 → 5.5 v. Moreover, the product has 2 input(s) per element . It contains 16 pins. The product is available in surface mount configuration. Provides up to 850 mw maximum power dissipation. Its accurate length is 3mm. In addition, the height is 1mm. Whereas, the minimum operating temperature of the product is -40 °c. Quality product with a analogue switch type.

pdf icon
DG2018, DG2019, Low Voltage, Dual DPDT and Quad SPDT Analogue Switches Data Sheet(Technical Reference)
