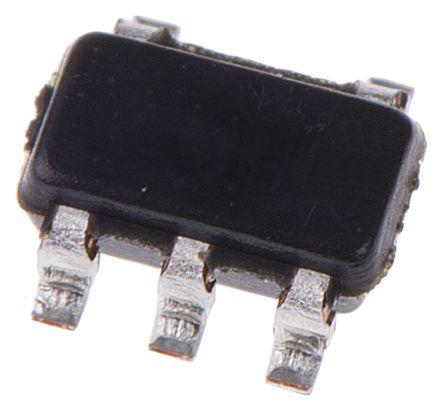

Maxim MAX4515CUK+, Analogue Switch Single SPST, 3 V, 5 V, 9 V, 5-Pin SOT-23

MAX4515CUK- Maxim MAX4515CUK+, Analogue Switch Single SPST, 3 V, 5 V, 9 V, 5-Pin SOT-23
MAX4515CUK+
Maxim

Product Information

Output Signal Type:
Single Ended
Dimensions:
2.9 x 1.63 x 1.1mm
Mounting Type:
Surface Mount
Input Signal Type:
Single Ended
Power Supply Type:
Single
Maximum Power Dissipation:
571 mW
Number of Channels per Chip:
1
Typical Single Supply Voltage:
3 V, 5 V, 9 V
Height:
1.1mm
Width:
1.63mm
Length:
2.9mm
Package Type:
SOT-23
Minimum Operating Temperature:
0 °C
Configuration:
Single SPST
Maximum Operating Temperature:
+70 °C
Pin Count:
5
Switch Type:
Analogue
RoHs Compliant
Checking for live stock

This is Analogue Switch Single SPST 3 V 5 V 9 V 5-Pin SOT-23 manufactured by Maxim. The manufacturer part number is MAX4515CUK+. The output signal is a kind of single ended. The given dimensions of the product include 2.9 x 1.63 x 1.1mm. The product is available in surface mount configuration. The input signal is a kind of single ended signal. It is a type of single power supply. Provides up to 571 mw maximum power dissipation. It comprises 1 channels per chip. It has a typical single supply voltage of 3 v, 5 v, 9 v. In addition, the height is 1.1mm. Furthermore, the product is 1.63mm wide. Its accurate length is 2.9mm. The package is a sort of sot-23. Whereas, the minimum operating temperature of the product is 0 °c. The product is available in single spst configuration. It has a maximum operating temperature of +70 °c. It contains 5 pins. Quality product with a analogue switch type.

pdf icon
MAX4514/MAX4515 Low-Voltage, Low-On-Resistance, SPST, CMOS Analog Switches Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
