Dimensions:
3.16 x 3.11 x 0.95mm
Mounting Type:
Surface Mount

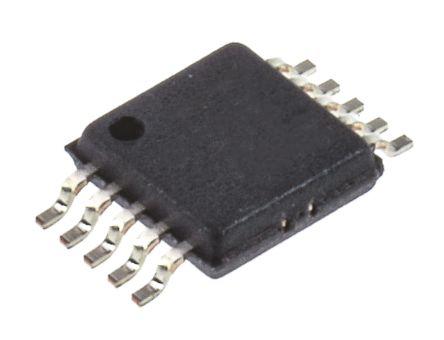

Package Type:
μMAX
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
10
Channel-to-Channel Matching (ΔRon):
60mOhm
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:
10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Switch Time (Ton, Toff) (Max):
50ns, 30ns
Current - Leakage (IS(off)) (Max):
1nA
Voltage - Supply, Dual (V±):
-
-3db Bandwidth:
-
REACH Status:
REACH Unaffected
Multiplexer/Demultiplexer Circuit:
2:1
Package:
Tube
Channel Capacitance (CS(off), CD(off)):
84pF, 37pF
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Voltage - Supply, Single (V+):
1.8V ~ 5.5V
standardLeadTime:
20 Weeks
Switch Circuit:
SPDT
Number of Circuits:
2
Mounting Type:
Surface Mount
Series:
-
Crosstalk:
-68dB @ 100kHz
On-State Resistance (Max):
800mOhm
Supplier Device Package:
10-uMAX/uSOP
Charge Injection:
200pC
Base Product Number:
MAX4684
ECCN:
EAR99
