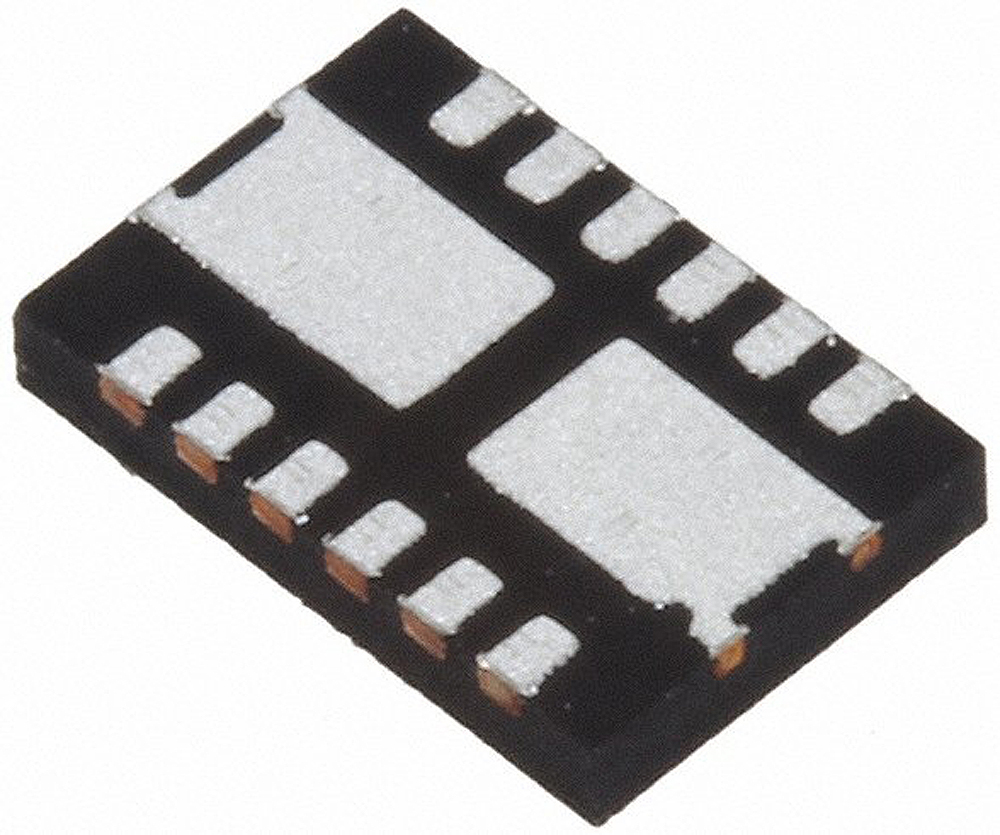

The Vishay DG2034EDN-T1-GE4 is a single multiplexer switch IC with a compact 12-pin package designed to switch circuits in high-speed switching applications. The benefits include compact size, high-speed functionality, cost-effectiveness, reliability, minimal power consumption, low on-resistance & leakage current, and reduced signal distortion.
Vishay's Multiplexer Switch IC Single 4:1, 1.8 → 5.5 V, 12-Pin QFN is a highly advanced integrated circuit designed to provide a high level of switching control. This device has a number of features that make it a great choice for a variety of applications.
Features of Vishay DG2034EDN-T1-GE4, Multiplexer Switch IC Single 4:1, 1.8 → 5.5 V, 12-Pin QFN:
The device features a wide operating voltage range of 1.8 to 5.5V and a high switching speed of up to 2.4GHz. Additionally, it has a low on-resistance of only 0.8Ω and a low input capacitance of only 5.5pF. These features make it an ideal choice for high-speed switching applications.
Benefits of Vishay DG2034EDN-T1-GE4, Multiplexer Switch IC Single 4:1, 1.8 → 5.5 V, 12-Pin QFN:
The device also has a number of benefits for the user. It has high current handling capability, up to 1A, providing greater power efficiency and improved system reliability. Additionally, it is RoHS-compliant and has a low profile, making it easy to integrate into existing systems.
Applications:
The Vishay Multiplexer Switch IC Single 4:1, 1.8 → 5.5 V, 12-Pin QFN can be used in a variety of applications including data acquisition, A/D and D/A conversion, and control systems. It is an ideal choice for applications that require high speed, power efficiency, and reliability.
Technical Specifications:
This is Multiplexer Switch IC Single 4:1 1.8 → 5.5 V 12-Pin QFN manufactured by Vishay. The manufacturer part number is DG2034EDN-T1-GE4. The given dimensions of the product include 3 x 3 x 1mm. The product is available in surface mount configuration. The package is a sort of QFN. Whereas the minimum operating temperature of the product is -40 °c. It has a maximum operating temperature of +85 °c. It contains 12 pins.
For more information please check the datasheets.
this is absolutely perfect. Does exactly what it is supposed to do, and it is well built.
