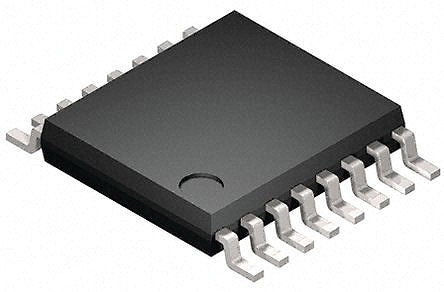

This DG1412EEQ-T1-GE4 form Vishay is a 16-pin TSSOP analogue switch with high-speed operation in communications, consumer electronics, audio and video systems, and test equipment. The Quad SPST switch ensures reliable, low-capacitance, low on-resistance, low signal distortion, and low leakage current switching in various applications.
Vishay Analogue Switch Quad SPST is a 4.5 to 24V, 16-pin TSSOP, surface mount switch. It is a low-power, low-voltage analogue switch that has high-performance, low-capacitance switching capabilities. This switch is suitable for use in a variety of applications like communication systems, consumer electronics, and industrial applications.
Features & Advantages of Vishay DG1412EEQ-T1-GE4, Analogue Switch Quad SPST, 4.5 → 24 V, 16-Pin TSSOP:
It is an ideal switch for applications that require high-speed switching with low-power consumption. It has low-capacitance switching with a low, on-resistance of 60 mΩ max. It has an excellent signal-to-noise ratio and low crosstalk. Its high-speed operation ensures quick and reliable switching. The switch has a low-voltage logic input with an input voltage range of 4.5 to 24V. It also has a high-impedance state for both channels when the logic input is low. Its output voltage is up to 24V, and the output current can be up to 10mA. It is RoHS compliant and meets the standards of AEC-Q100.
Where To Use Vishay DG1412EEQ-T1-GE4, Analogue Switch Quad SPST, 4.5 → 24 V, 16-Pin TSSOP?
This switch is a versatile and reliable component that is used in many different types of applications. It is suitable for use in signal routing, signal multiplexing, and level shifting. It is also used in battery-powered systems and for interfacing with microcontrollers.
