Alpha Wire 5110/25C SL002

5110-25C-SL002 Alpha Wire 5110/25C SL002
5110/25C SL002
Alpha Wire

Product Information

Ratings:
ISO 10993, UL Style 2464
HTSUS:
8544.49.3080
RoHS Status:
ROHS3 Compliant
Conductor Strand:
7/30
Operating Temperature:
-35°C ~ 105°C
Usage:
Communication, Control
Number of Conductors:
25
REACH Status:
REACH Unaffected
Jacket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Wire Gauge:
22 AWG
Shield Type:
Foil, Braid
Jacket (Insulation) Thickness:
0.0320" (0.813mm)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
500.0' (152.4m)
Conductor Insulation:
Poly-Vinyl Chloride (PVC)
standardLeadTime:
6 Weeks
Shield Coverage:
100%, 70%
Features:

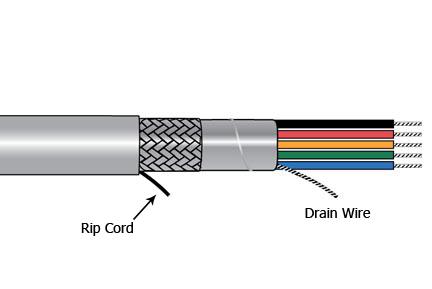

Biological Compatibility, Drain Wire, Rip Cord
Jacket (Insulation) Diameter:
0.396" (10.06mm)
Conductor Material:
Copper, Tinned
Series:
Xtra-Guard® 1
Cable Type:
Multi-Conductor
Packaging:
Spool
Voltage:
300 V
Shield Material:
Suprashield®; Copper, Tinned
ECCN:
EAR99
Base Product Number:
5110/25C
Jacket Color:
Slate
American Wire Gauge:
22 AWG
Sheath Material:
Polyvinyl Chloride PVC
Series:
5110
Sheath Colour:
Grey
Length:
500ft
Screened/Unscreened:
Screened
Cross Sectional Area:
0.34 mm²
Number of Cores:
25
RoHs Compliant
Checking for live stock

This is manufactured by Alpha Wire. The manufacturer part number is 5110/25C SL002. Features 22 awg - American Wire Gauge. The sheath is constructed from durable and adorable polyvinyl chloride pvc material. The product 5110, is a highly preferred choice for users. The sheath has an adorable grey colour. Its accurate length is 500ft. Screen Options - screened. The product has 0.34 mm² cross section area. The product consists of 25 cores. It is rated with iso 10993, ul style 2464. It is assigned with possible HTSUS value of 8544.49.3080. The product is rohs3 compliant. It also features a 7/30 conductor strand. The product has -35°c ~ 105°c operating temperature range. The product's typical Applications include uses in communication, control. It features 25 conductors. In addition, it is reach unaffected. Its jacket is made from highly insulated poly-vinyl chloride (pvc) materials. Moreover, the product has a wire gauge of 22 awg. The item is shielded with a foil, braid. Furthermore, the insulated jacket is a 0.0320" (0.813mm) thick. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 500.0' (152.4m). The conductor offers excellent insulation due to poly-vinyl chloride (pvc) materials. It has a long 6 weeks standard lead time. It covers shielding capability up to 100%, 70%. The splendid features of the product include biological compatibility, drain wire, rip cord. The diameter of the jacket is 0.396" (10.06mm). The conductor is made from copper, tinned material. The product xtra-guard® 1, is a highly preferred choice for users. It is a typical multi-conductor cable. In addition, spool is the available packaging type of the product. It carries a 300 v of voltage. The product is shielded with a robust suprashield®; copper, tinned shield materials. The product is designated with the ear99 code number. Moreover, it corresponds to 5110/25c, a base product number of the product. It comes in nice slate colour.

pdf icon
Xtra Guard 1 Cables 12/Aug/2015(PCN Design/Specification)
pdf icon
Xtra-Guard Catalog(Datasheets)
pdf icon
Datasheet - 5110/25C SL002(Technical Reference)
