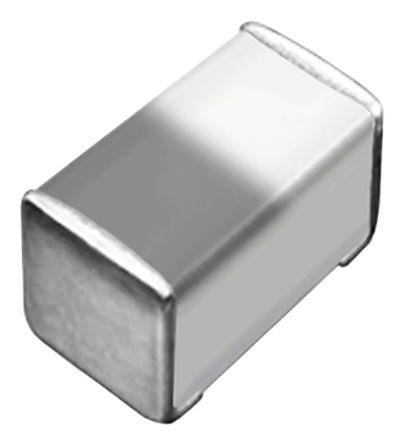

TDK MHQ-P Series 1.8 nH Ceramic Multilayer SMD Inductor, 0402 (1005M) Case, SRF: 15.1GHz Q: 23 1A dc 40mΩ Rdc

MHQ1005P1N8BT000 TDK MHQ-P Series 1.8 nH Ceramic Multilayer SMD Inductor, 0402 (1005M) Case, SRF: 15.1GHz Q: 23 1A dc 40mΩ Rdc
TDK

Product Information

Maximum DC Resistance:
40mΩ
Inductor Construction:
Multilayer
Dimensions:
1 x 0.6 x 0.5mm
Shielded:
Yes
Series:
MHQ-P
Minimum Operating Temperature:
-55°C
Minimum Quality Factor:
23
Length:
1mm
Height:
0.5mm
Maximum DC Current:
1A
Depth:
0.6mm
Core Material:
Ceramic
Inductance:
1.8 nH
Maximum Self Resonant Frequency:
15.1GHz
Maximum Operating Temperature:
+125°C
Tolerance:
±0.1nH
Moulded:
Yes
Package/Case:
0402 (1005M)
RoHs Compliant
Checking for live stock

This is MHQ-P Series 1.8 nH Ceramic Multilayer SMD Inductor 0402 (1005M) Case SRF: 15.1GHz Q: 23 1A dc 40mΩ Rdc manufactured by TDK. The manufacturer part number is MHQ1005P1N8BT000. It allows up to 40mω maximum DC resistance. The inductor is designed as multilayer inductor. The given dimensions of the product include 1 x 0.6 x 0.5mm. Shielding Options yes. The product mhq-p, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. It has minimum 23 quality factors. Its accurate length is 1mm. In addition, the height is 0.5mm. While it carries 1a of maximum DC current. The product comes in 0.6mm depth. The core is manufactured from highly durable and reliable ceramic materials. The product has a 1.8 nh inductance value. It provides 15.1ghz of maximum self-resonant frequency. It has a maximum operating temperature of +125°c. It features ±0.1nh of tolerance value. In addition, it is moulded yes . Concerning its package and casing, it is 0402 (1005m).
