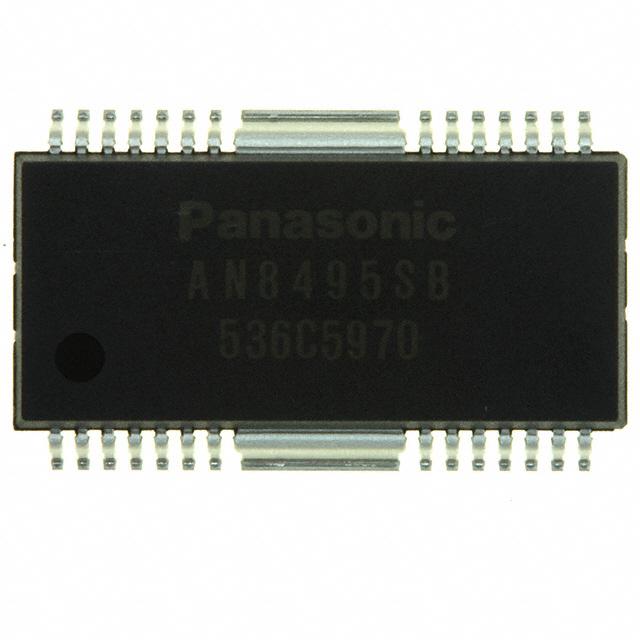

Panasonic Electronic Components AN8495SB-E1V

AN8495SB-E1V Panasonic Electronic Components
Panasonic Electronic Components

Product Information

HTSUS:
8542.39.0001
Operating Temperature:
-
Package / Case:
28-BSOP (0.327", 8.30mm Width) + 2 Heat Tabs
Function:
Driver - Fully Integrated, Control and Power Stage
Motor Type - AC, DC:
-
Current - Output:
1.5A
Applications:
General Purpose
Interface:
Parallel
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Motor Type - Stepper:
Bipolar
Mounting Type:
Surface Mount
Series:
-
Voltage - Load:
18V ~ 28V
Supplier Device Package:
28-HSOP
Step Resolution:
-
Voltage - Supply:
4.75V ~ 5.25V
Output Configuration:
Half Bridge (4)
Technology:
Power MOSFET
Base Product Number:
AN8495SB
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is AN8495SB-E1V. It is assigned with possible HTSUS value of 8542.39.0001. Moreover, the product comes in 28-bsop (0.327", 8.30mm width) + 2 heat tabs. It performs basic function of driver - fully integrated, control and power stage. While, the output current includes 1.5a. The product is widely employed in general purpose. A bespoke product is parallel interface. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). The stepper motor has a bipolar motor. The product is available in surface mount configuration. The given load voltage is 18v ~ 28v. 28-hsop is the supplier device package value. It has optimum voltage supply of 4.75v ~ 5.25v. It boasts half bridge (4) output configuration. This product use power mosfet technology. Moreover, it corresponds to an8495sb, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
AN8495SB(Datasheets)
