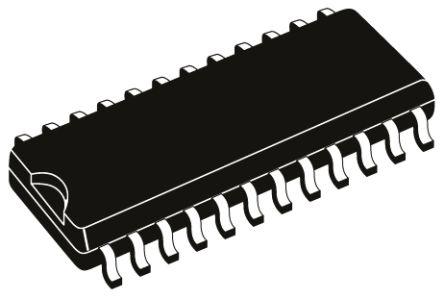

Infineon TLE4729GXUMA1, Stepper Motor Driver IC, 16 V 0.7A 24-Pin, DSO

TLE4729GXUMA1 Infineon , Stepper Motor Driver IC, 16 V 0.7A 24-Pin, DSO
Infineon

Product Information

Dimensions:
15.6 x 7.6 x 2.45mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
5 V
Maximum Collector Emitter Voltage:
16 V
Maximum IGBT Collector Current:
0.7A
Height:
2.45mm
Width:
7.6mm
Length:
15.6mm
Package Type:
DSO
Minimum Operating Temperature:
-40 °C
Output Configuration:
Dual Full Bridge
Motor Type:
Stepper
Maximum Operating Temperature:
+150 °C
Pin Count:
24
Maximum Operating Supply Voltage:
16 V
RoHs Compliant
Checking for live stock

This is Stepper Motor Driver IC 16 V 0.7A 24-Pin DSO manufactured by Infineon. The manufacturer part number is TLE4729GXUMA1. The given dimensions of the product include 15.6 x 7.6 x 2.45mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 5 v. Whereas features a 16 v of collector emitter voltage (max). It has a maximum 0.7a IGBT collector current . In addition, the height is 2.45mm. Furthermore, the product is 7.6mm wide. Its accurate length is 15.6mm. The package is a sort of dso. Whereas, the minimum operating temperature of the product is -40 °c. It boasts dual full bridge output configuration. This high-efficiency motor is a stepper. It has a maximum operating temperature of +150 °c. It contains 24 pins. It has 16 v maximum operating supply voltage.

pdf icon
TLE4729G, 2-Phase Stepper-Motor Driver Bipolar-IC(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
