Name: BTN7970BAUMA1, Infineon
Brand: Infineon
SKU: ET16892746
Price: 3.97 GBP
Availability: PreOrder

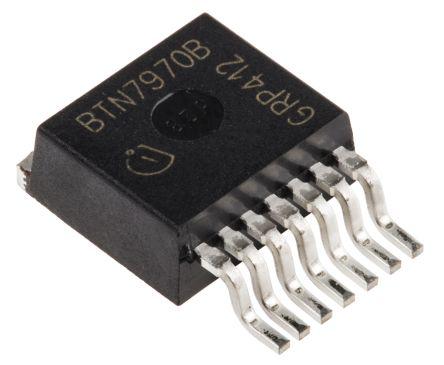

BTN7970BAUMA1 Infineon , BLDC Motor Driver IC, 18 V 50A 7-Pin, TO-263

(0)

Product Information

Dimensions:

10 x 9.25 x 4.4mm

Mounting Type:

Surface Mount

Minimum Operating Supply Voltage:

8 V

Maximum Collector Emitter Voltage:

18 V

Maximum IGBT Collector Current:

50A

Height:

4.4mm

Width:

9.25mm

Length:

10mm

Package Type:

TO-263

Typical Switching Frequency:

25kHz

Minimum Operating Temperature:

-40 °C

Output Configuration:

Half Bridge

Checking for live stock

This is BLDC Motor Driver IC 18 V 50A 7-Pin TO-263 manufactured by Infineon. The manufacturer part number is BTN7970BAUMA1. The given dimensions of the product include 10 x 9.25 x 4.4mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 8 v. Whereas features a 18 v of collector emitter voltage (max). It has a maximum 50a IGBT collector current . In addition, the height is 4.4mm. Furthermore, the product is 9.25mm wide. Its accurate length is 10mm. The package is a sort of to-263. It has a typical 25khz switching frequency . Whereas, the minimum operating temperature of the product is -40 °c. It boasts half bridge output configuration. This high-efficiency motor is a bldc. It has a maximum operating temperature of +150 °c. It contains 7 pins. It has 18 v maximum operating supply voltage.
