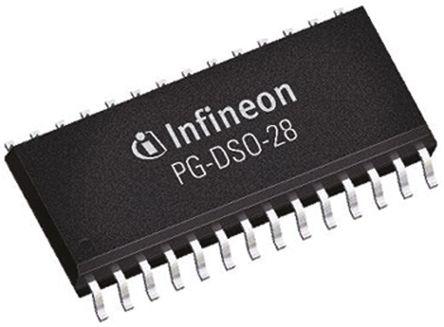

Quad D-MOS Switch DC Motor Driver DSO28

BTM7740GXUMA1 Quad D-MOS Switch DC Motor Driver DSO28
Infineon

Product Information

Automotive Standard:
AEC-Q100
Dimensions:
18.1 x 7.6 x 2.45mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
1.8 V
Maximum Collector Emitter Voltage:
40 V
Maximum IGBT Collector Current:
8A
Height:
2.45mm
Width:
7.6mm
Length:
18.1mm
Package Type:
DSO
Typical Switching Frequency:
1kHz
Minimum Operating Temperature:
-40 °C
Output Configuration:
Full Bridge
Motor Type:
BLDC
Maximum Operating Temperature:
+150 °C
Pin Count:
28
Maximum Operating Supply Voltage:
42 V
RoHs Compliant
Checking for live stock

This is Quad D-MOS Switch DC Motor Driver DSO28 manufactured by Infineon. The manufacturer part number is BTM7740GXUMA1. The product complies with automotive standard - aec-q100. The given dimensions of the product include 18.1 x 7.6 x 2.45mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 1.8 v. Whereas features a 40 v of collector emitter voltage (max). It has a maximum 8a IGBT collector current . In addition, the height is 2.45mm. Furthermore, the product is 7.6mm wide. Its accurate length is 18.1mm. The package is a sort of dso. It has a typical 1khz switching frequency . Whereas, the minimum operating temperature of the product is -40 °c. It boasts full bridge output configuration. This high-efficiency motor is a bldc. It has a maximum operating temperature of +150 °c. It contains 28 pins. It has 42 v maximum operating supply voltage.

pdf icon
BTM7740G Trilith IC Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
