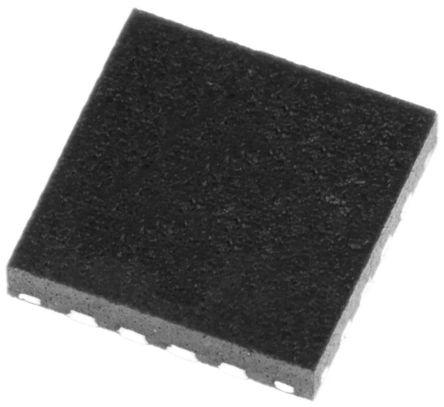

NXP MPC17C724EP, DC Motor Driver IC, 5 V 0.4A 16-Pin, QFN

Enrgtech Part No: ET16753528
|
Manufacturer Part No:
MPC17C724EP
|
Manufacturer: NXP

MPC17C724EP NXP , DC Motor Driver IC, 5 V 0.4A 16-Pin, QFN

(0)

Product Information

Dimensions:

3 x 3 x 1mm

Mounting Type:

Surface Mount

Minimum Operating Supply Voltage:

2.7 V

Maximum Collector Emitter Voltage:

5 V

Maximum IGBT Collector Current:

0.4A

Height:

1mm

Width:

3mm

Length:

3mm

Package Type:

QFN

Typical Switching Frequency:

200kHz

Minimum Operating Temperature:

-20 °C

Output Configuration:

Dual Full Bridge

Checking for live stock

This is DC Motor Driver IC 5 V 0.4A 16-Pin QFN manufactured by NXP. The manufacturer part number is MPC17C724EP. The given dimensions of the product include 3 x 3 x 1mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 2.7 v. Whereas features a 5 v of collector emitter voltage (max). It has a maximum 0.4a IGBT collector current . In addition, the height is 1mm. Furthermore, the product is 3mm wide. Its accurate length is 3mm. The package is a sort of qfn. It has a typical 200khz switching frequency . Whereas, the minimum operating temperature of the product is -20 °c. It boasts dual full bridge output configuration. This high-efficiency motor is a dc. It has a maximum operating temperature of +85 °c. It contains 16 pins. It has 5.5 v maximum operating supply voltage.

ESD Control Selection Guide V1(Technical Reference)

0.4A Dual H-Bridge Motor Driver IC Datasheet(Technical Reference)
