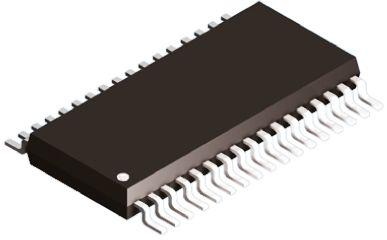

Panasonic AN44067A-VF, Stepper Motor Driver IC, 34 V 2.5A 34-Pin, HSOP

AN44067A-VF Panasonic , Stepper Motor Driver IC, 34 V 2.5A 34-Pin, HSOP
Panasonic

Product Information

Dimensions:
14 x 6.1 x 1.2mm
Mounting Type:
Surface Mount
Minimum Operating Supply Voltage:
10 V
Maximum Collector Emitter Voltage:
34 V
Maximum IGBT Collector Current:
2.5A
Height:
1.2mm
Inverter Power Rating:
0.466W
Width:
6.1mm
Length:
14mm
Package Type:
HSOP
Minimum Operating Temperature:
-20 °C
Output Configuration:
Bipolar
Motor Type:
Stepper
Maximum Operating Temperature:
+70 °C
Pin Count:
34
Maximum Operating Supply Voltage:
34 V
RoHs Compliant
Checking for live stock

This is Stepper Motor Driver IC 34 V 2.5A 34-Pin HSOP manufactured by Panasonic. The manufacturer part number is AN44067A-VF. The given dimensions of the product include 14 x 6.1 x 1.2mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 10 v. Whereas features a 34 v of collector emitter voltage (max). It has a maximum 2.5a IGBT collector current . In addition, the height is 1.2mm. It has 0.466w inverter power rating . Furthermore, the product is 6.1mm wide. Its accurate length is 14mm. The package is a sort of hsop. Whereas, the minimum operating temperature of the product is -20 °c. It boasts bipolar output configuration. This high-efficiency motor is a stepper. It has a maximum operating temperature of +70 °c. It contains 34 pins. It has 34 v maximum operating supply voltage.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
AN44067A Data Sheet(Technical Reference)
