Name: AN44066A-VF, Panasonic
Brand: Panasonic
SKU: ET14152811
Price: 1.51 GBP
Availability: PreOrder

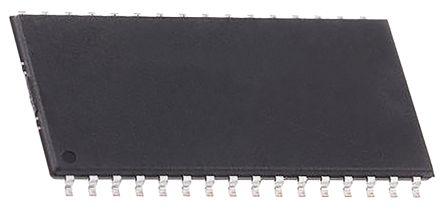

AN44066A-VF Panasonic , Stepper Motor Driver IC, 34 V 0.8A 32-Pin, SSOP

(0)

Product Information

Dimensions:

11 x 6.1 x 1.9mm

Mounting Type:

Surface Mount

Minimum Operating Supply Voltage:

10 V

Maximum Collector Emitter Voltage:

34 V

Maximum IGBT Collector Current:

0.8A

Height:

1.9mm

Inverter Power Rating:

0.427W

Width:

6.1mm

Length:

11mm

Package Type:

SSOP

Typical Switching Frequency:

52kHz

Minimum Operating Temperature:

-20 °C

Checking for live stock

This is Stepper Motor Driver IC 34 V 0.8A 32-Pin SSOP manufactured by Panasonic. The manufacturer part number is AN44066A-VF. The given dimensions of the product include 11 x 6.1 x 1.9mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 10 v. Whereas features a 34 v of collector emitter voltage (max). It has a maximum 0.8a IGBT collector current . In addition, the height is 1.9mm. It has 0.427w inverter power rating . Furthermore, the product is 6.1mm wide. Its accurate length is 11mm. The package is a sort of ssop. It has a typical 52khz switching frequency . Whereas, the minimum operating temperature of the product is -20 °c. It boasts bipolar output configuration. This high-efficiency motor is a stepper. It has a maximum operating temperature of +70 °c. It contains 32 pins. It has 34 v maximum operating supply voltage.
