Name: NJM3774D2, New Japan Radio
Brand: New Japan Radio
SKU: ET14120003
Price: 3.34 GBP
Availability: InStock

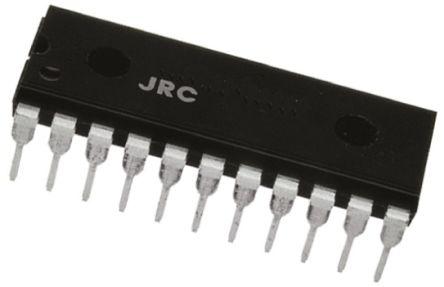

NJM3774D2 New Japan Radio , Stepper Motor Driver IC, 45 V 1A, PDIP 22-Pin

(0)

Product Information

Dimensions:

27.81 x 9.02 x 5.33mm

Mounting Type:

Through Hole

Minimum Operating Supply Voltage:

4.75 V

Maximum Collector Emitter Voltage:

45 V

Maximum IGBT Collector Current:

Height:

5.33mm

Width:

9.02mm

Length:

27.81mm

Package Type:

PDIP

Minimum Operating Temperature:

-20 °C

Output Configuration:

Bipolar

Motor Type:

Stepper

Checking for live stock

This is Stepper Motor Driver IC 45 V 1A PDIP 22-Pin manufactured by New Japan Radio. The manufacturer part number is NJM3774D2. The given dimensions of the product include 27.81 x 9.02 x 5.33mm. The product is available in through hole configuration. While its minimum operating supply voltage is 4.75 v. Whereas features a 45 v of collector emitter voltage (max). It has a maximum 1a IGBT collector current . In addition, the height is 5.33mm. Furthermore, the product is 9.02mm wide. Its accurate length is 27.81mm. The package is a sort of pdip. Whereas, the minimum operating temperature of the product is -20 °c. It boasts bipolar output configuration. This high-efficiency motor is a stepper. It has a maximum operating temperature of +125 °c. It contains 22 pins. It has 5.25 v maximum operating supply voltage.

NJM3774 DUAL STEPPER MOTOR DRIVER Data Sheet(Technical Reference)
