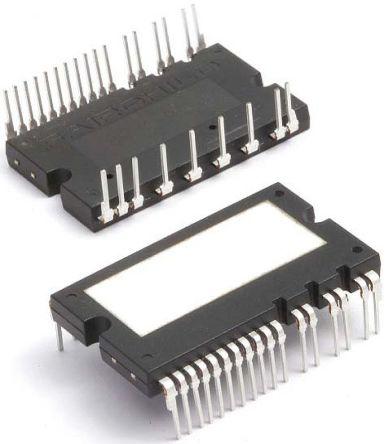

Fairchild Semiconductor FNA41560B2, AC Induction Motor Driver IC, 600 V 15A, PDIP 26-Pin

FNA41560B2 Fairchild Semiconductor , AC Induction Motor Driver IC, 600 V 15A, PDIP 26-Pin
Fairchild Semiconductor

Product Information

Dimensions:
39.5 x 23.5 x 4.8mm
Mounting Type:
Through Hole
Maximum Isolation Rating:
2000Vrms
Series:
Motion SPM 45 Series
Maximum Collector Emitter Voltage:
600 V
Maximum IGBT Collector Current:
15A
Height:
4.8mm
Width:
23.5mm
Length:
39.5mm
Package Type:
PDIP
Typical Switching Frequency:
5kHz
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
13.5 V
Output Configuration:
3 Phase
Motor Type:
AC Induction
Maximum Operating Temperature:
+150 °C
Pin Count:
26
Maximum Operating Supply Voltage:
16.5 V
RoHs Compliant
Checking for live stock

This is AC Induction Motor Driver IC 600 V 15A PDIP 26-Pin manufactured by Fairchild Semiconductor. The manufacturer part number is FNA41560B2. The given dimensions of the product include 39.5 x 23.5 x 4.8mm. The product is available in through hole configuration. It has a maximum 2000vrms isolation rating . The product motion spm 45 series, is a highly preferred choice for users. Whereas features a 600 v of collector emitter voltage (max). It has a maximum 15a IGBT collector current . In addition, the height is 4.8mm. Furthermore, the product is 23.5mm wide. Its accurate length is 39.5mm. The package is a sort of pdip. It has a typical 5khz switching frequency . Whereas, the minimum operating temperature of the product is -40 °c. While its minimum operating supply voltage is 13.5 v. It boasts 3 phase output configuration. This high-efficiency motor is a ac induction. It has a maximum operating temperature of +150 °c. It contains 26 pins. It has 16.5 v maximum operating supply voltage.

pdf icon
FNA41560 / FNA41560B2, Motion SPM (Smart Power Modules) 45 Series(Technical Reference)
