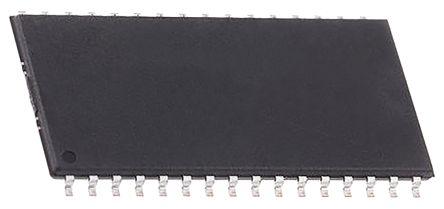

Panasonic AN44063A-VF, Stepper Motor Driver IC, 37 V 0.8A, SSOP 32-Pin

Enrgtech Part No: ET13944346
|
Manufacturer Part No:
AN44063A-VF
|
Manufacturer: Panasonic

AN44063A-VF Panasonic , Stepper Motor Driver IC, 37 V 0.8A, SSOP 32-Pin

Product Information

Dimensions:

11 x 6.1 x 1.4mm

Mounting Type:

Surface Mount

Minimum Operating Supply Voltage:

4.5 V

Maximum Collector Emitter Voltage:

37 V

Maximum IGBT Collector Current:

0.8A

Height:

1.4mm

Width:

6.1mm

Length:

11mm

Package Type:

SSOP

Typical Switching Frequency:

52kHz

Minimum Operating Temperature:

-20 °C

Output Configuration:

Bipolar

Checking for live stock

This is Stepper Motor Driver IC 37 V 0.8A SSOP 32-Pin manufactured by Panasonic. The manufacturer part number is AN44063A-VF. The given dimensions of the product include 11 x 6.1 x 1.4mm. The product is available in surface mount configuration. While its minimum operating supply voltage is 4.5 v. Whereas features a 37 v of collector emitter voltage (max). It has a maximum 0.8a IGBT collector current . In addition, the height is 1.4mm. Furthermore, the product is 6.1mm wide. Its accurate length is 11mm. The package is a sort of ssop. It has a typical 52khz switching frequency . Whereas, the minimum operating temperature of the product is -20 °c. It boasts bipolar output configuration. This high-efficiency motor is a stepper. It has a maximum operating temperature of +70 °c. It contains 32 pins. It has 5.5 v maximum operating supply voltage.

AN44063A, 37V 0.8A Stepping Motor Driver(Technical Reference)
