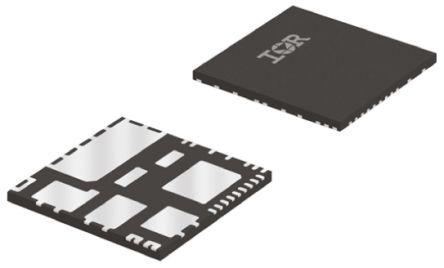

Infineon IRSM836-024MA, AC Induction Motor Driver IC, 250 V 2A, PQFN 36-Pin

IRSM836-024MA Infineon , AC Induction Motor Driver IC, 250 V 2A, PQFN 36-Pin
Infineon

Product Information

Dimensions:
12 x 12 x 0.95mm
Mounting Type:
Surface Mount
Maximum Isolation Rating:
1500Vrms
Series:
Intelligent Power Module
Maximum Collector Emitter Voltage:
250 V
Maximum IGBT Collector Current:
2A
Height:
0.95mm
Inverter Power Rating:
95W
Width:
12mm
Length:
12mm
Package Type:
PQFN
Typical Switching Frequency:
20kHz
Minimum Operating Temperature:
-40 °C
Minimum Operating Supply Voltage:
12 V
Output Configuration:
3 Phase
Motor Type:
AC Induction
Maximum Operating Temperature:
+150 °C
Pin Count:
36
Maximum Operating Supply Voltage:
20 V
RoHs Compliant
Checking for live stock

This is AC Induction Motor Driver IC 250 V 2A PQFN 36-Pin manufactured by Infineon. The manufacturer part number is IRSM836-024MA. The given dimensions of the product include 12 x 12 x 0.95mm. The product is available in surface mount configuration. It has a maximum 1500vrms isolation rating . The product intelligent power module, is a highly preferred choice for users. Whereas features a 250 v of collector emitter voltage (max). It has a maximum 2a IGBT collector current . In addition, the height is 0.95mm. It has 95w inverter power rating . Furthermore, the product is 12mm wide. Its accurate length is 12mm. The package is a sort of pqfn. It has a typical 20khz switching frequency . Whereas, the minimum operating temperature of the product is -40 °c. While its minimum operating supply voltage is 12 v. It boasts 3 phase output configuration. This high-efficiency motor is a ac induction. It has a maximum operating temperature of +150 °c. It contains 36 pins. It has 20 v maximum operating supply voltage.

pdf icon
IRSM836-024MA 2A 250V Integrated Power Module Data Sheet(Technical Reference)
