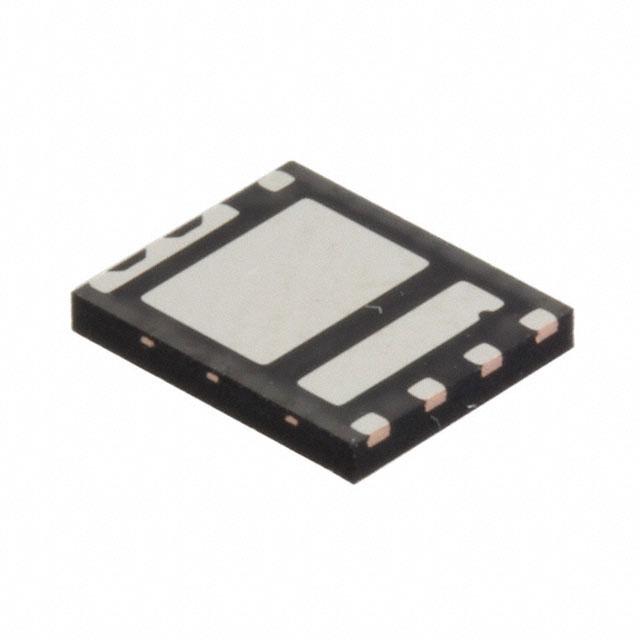

Dual N-Channel MOSFET, 22 A, 30 A, 30 V, 8-Pin Power 56 onsemi FDMS7608S

FDMS7608S Dual N-Channel MOSFET, 22 A, 30 A, 30 V, 8-Pin Power 56 onsemi
FDMS7608S
onsemi

Product Information

Maximum Continuous Drain Current:
22 A, 30 A
Transistor Material:
Si
Width:
6mm
Transistor Configuration:
Series
Maximum Drain Source Voltage:
30 V
Package Type:
PQFN8
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1.2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
18 nC @ 10 V, 21 nC @ 10 V
Channel Type:
N
Length:
5mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2.2 W, 2.5 W
Series:
PowerTrench
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.725mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
8.6 mΩ, 13.9 mΩ
FET Feature:
Logic Level Gate
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
8-PowerWDFN
Rds On (Max) @ Id, Vgs:
10mOhm @ 12A, 10V
Gate Charge (Qg) (Max) @ Vgs:
24nC @ 10V
Vgs(th) (Max) @ Id:
3V @ 250µA
REACH Status:
REACH Unaffected
Current - Continuous Drain (Id) @ 25°C:
12A, 15A
Configuration:
2 N-Channel (Dual)
Manufacturer:
onsemi
Drain to Source Voltage (Vdss):
30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
16 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
1510pF @ 15V
Mounting Type:
Surface Mount
Series:
PowerTrench®
Supplier Device Package:
Power56
Packaging:
Tape & Reel (TR)
Power - Max:
1W
Technology:
MOSFET (Metal Oxide)
Base Product Number:
FDMS7608
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Dual N-Channel MOSFET 22 A 30 A 30 V 8-Pin Power 56 manufactured by onsemi. The manufacturer part number is FDMS7608S. While 22 a, 30 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 6mm wide. The product offers series transistor configuration. It has a maximum of 30 v drain source voltage. The package is a sort of pqfn8. It consists of 2 elements per chip. Whereas its minimum gate threshold voltage includes 1.2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 18 nc @ 10 v, 21 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 5mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 2.2 w, 2.5 w maximum power dissipation. The product powertrench, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 0.725mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 8.6 mω, 13.9 mω maximum drain source resistance. The FET features of the product include logic level gate. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 8-powerwdfn. It has a maximum Rds On and voltage of 10mohm @ 12a, 10v. The maximum gate charge and given voltages include 24nc @ 10v. The typical Vgs (th) (max) of the product is 3v @ 250µa. In addition, it is reach unaffected. The continuous current drain at 25°C is 12a, 15a. The product is available in 2 n-channel (dual) configuration. The onsemi's product offers user-desired applications. The product has a 30v drain to source voltage. Its typical moisture sensitivity level is 1 (unlimited). It has a long 16 weeks standard lead time. The product's input capacitance at maximum includes 1510pf @ 15v. The product powertrench®, is a highly preferred choice for users. power56 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The maximum power of the product is 1w. This product use mosfet (metal oxide) technology. Moreover, it corresponds to fdms7608, a base product number of the product. The product is designated with the ear99 code number.
