Automotive N-Channel 250 V (D-S) 175C MO

SQD50034E_GE3 Automotive N-Channel 250 V (D-S) 175C MO
Vishay

Product Information

Maximum Continuous Drain Current:
100 A
Width:
9.65mm
Automotive Standard:
AEC-Q101
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
3.5V

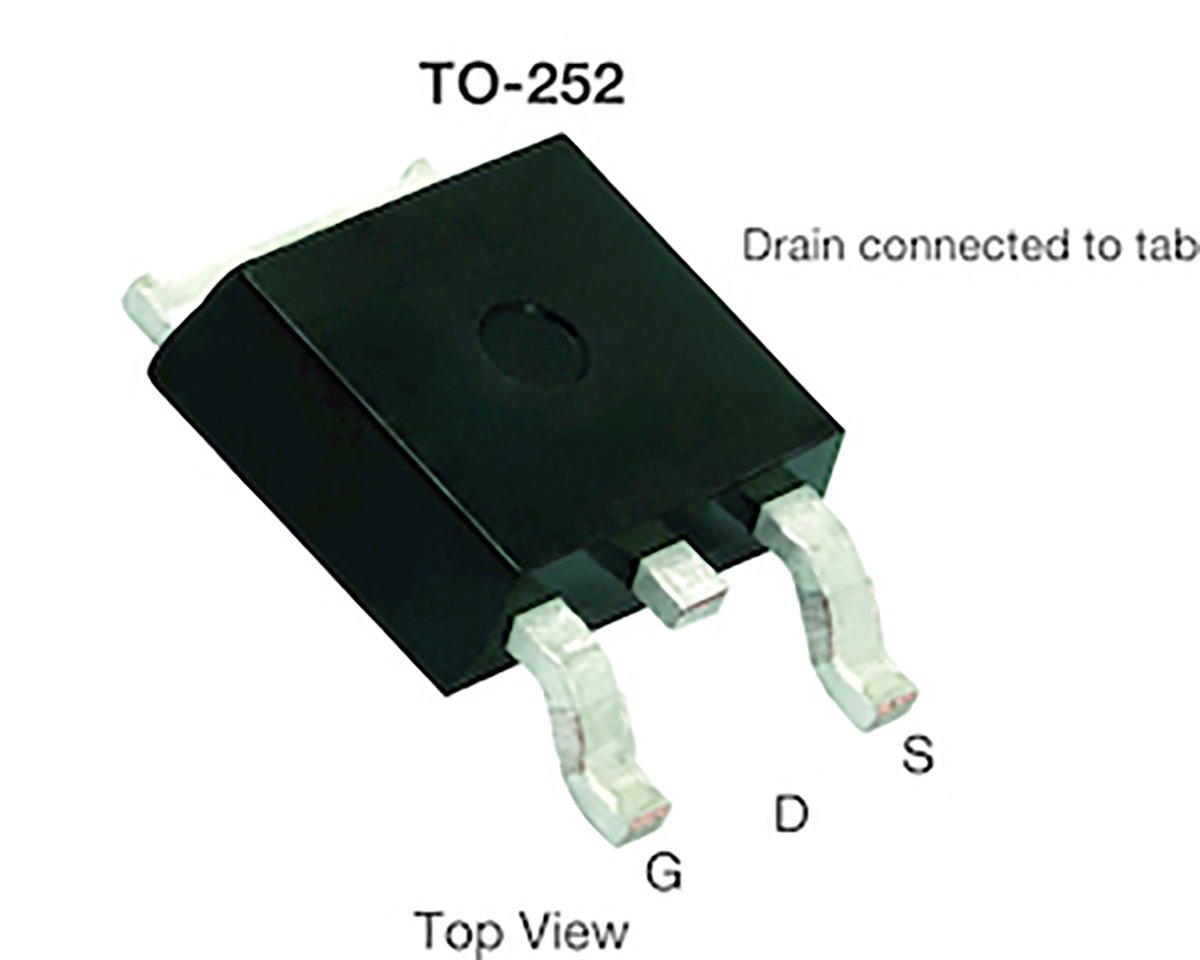

Package Type:
DPAK (TO-252)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.5V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
58 nC @ 10 V
Channel Type:
N
Length:
10.41mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
107 W
Maximum Gate Source Voltage:
±20 V
Height:
4.57mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.5V
Maximum Drain Source Resistance:
7.9 mΩ
RoHs Compliant
Checking for live stock

This is Automotive N-Channel 250 V (D-S) 175C MO manufactured by Vishay. The manufacturer part number is SQD50034E_GE3. While 100 a of maximum continuous drain current. Furthermore, the product is 9.65mm wide. The product complies with automotive standard - aec-q101. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The product carries 3.5v of maximum gate threshold voltage. The package is a sort of dpak (to-252). It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2.5v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 58 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.41mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 107 w maximum power dissipation. It features a maximum gate source voltage of ±20 v. In addition, the height is 4.57mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.5v . It provides up to 7.9 mω maximum drain source resistance.

pdf icon
Datasheet SQD50034E_GE3(Technical Reference)
