Maximum Drain Source Voltage:
30 (Channel 1) V, 30 (Channel 2) V
Typical Gate Charge @ Vgs:
19 nC @ 15 V (Channel 1), 83 nC @ 15 V (Channel 2)
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
28 W, 74 W
Maximum Gate Source Voltage:
+16 V, +20 V, -12 V, -16 V
Maximum Gate Threshold Voltage:
2.2 (Channel 2) V, 2.4 (Channel 1) V
Height:
0.7mm
Width:
5.1mm
Length:
6.1mm
Maximum Drain Source Resistance:
0.0014 (Channel 2) Ω, 0.005 (Channel 1) Ω

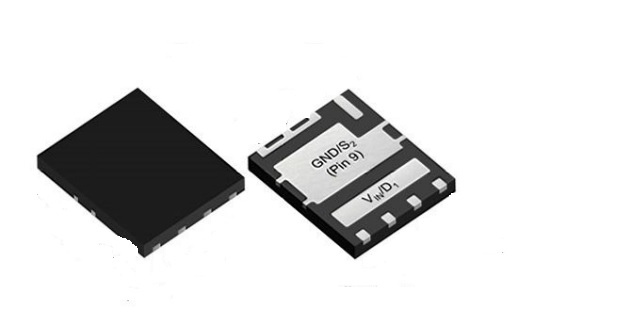

Package Type:
PowerPAIR 6 x 5 F
Number of Elements per Chip:
2
Minimum Operating Temperature:
-55 °C
Maximum Continuous Drain Current:
197 (Channel 2) A, 76 (Channel 1) A
Minimum Gate Threshold Voltage:
1.1 (Channel 1) V, 1.1 (Channel 2) V
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
8
Transistor Configuration:
Dual
