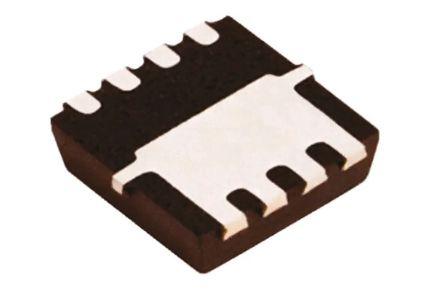

N-Channel 80-V (D-S) MOSFET PowerPAK 121

SIS108DN-T1-GE3 N-Channel 80-V (D-S) MOSFET PowerPAK 121
Vishay

Product Information

Maximum Continuous Drain Current:
16 A
Width:
3.15mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
80 V
Maximum Gate Threshold Voltage:
4V
Package Type:
PowerPAK 1212
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
9.2 nC @ 10 V
Channel Type:
N
Length:
3.15mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
24 W
Maximum Gate Source Voltage:
±20 V
Height:
1.07mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
44 mΩ
RoHs Compliant
Checking for live stock

This is N-Channel 80-V (D-S) MOSFET PowerPAK 121 manufactured by Vishay. The manufacturer part number is SIS108DN-T1-GE3. While 16 a of maximum continuous drain current. Furthermore, the product is 3.15mm wide. The product offers single transistor configuration. It has a maximum of 80 v drain source voltage. The product carries 4v of maximum gate threshold voltage. The package is a sort of powerpak 1212. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 9.2 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 3.15mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 24 w maximum power dissipation. It features a maximum gate source voltage of ±20 v. In addition, the height is 1.07mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 44 mω maximum drain source resistance.

pdf icon
Datasheet SIS108DN-T1-GE3(Technical Reference)
