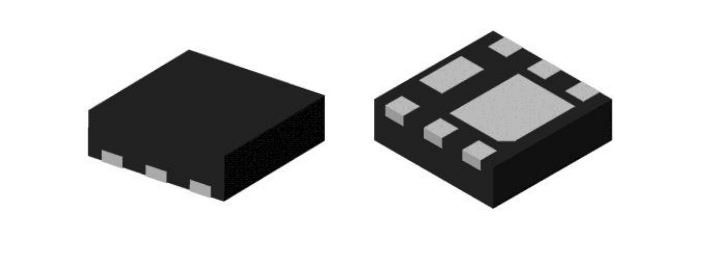

MOSFET BVDSS: 8V-24V U-DFN2020-6 T&R 3K

DMN1008UFDF-7 MOSFET BVDSS: 8V-24V U-DFN2020-6 T&R 3K
DiodesZetex

Product Information

Maximum Continuous Drain Current:
12.2 A
Width:
2.05mm
Automotive Standard:
AEC-Q101
Transistor Configuration:
Single
Maximum Drain Source Voltage:
12 V
Maximum Gate Threshold Voltage:
1V
Package Type:
U-DFN2020
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
23.4 nC @ 8 V
Channel Type:
N
Length:
2.05mm
Pin Count:
6
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
1.7 W
Maximum Gate Source Voltage:
±8 V
Height:
0.58mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
12.5 mΩ
RoHs Compliant
Checking for live stock

This is MOSFET BVDSS: 8V-24V U-DFN2020-6 T&R 3K manufactured by DiodesZetex. The manufacturer part number is DMN1008UFDF-7. While 12.2 a of maximum continuous drain current. Furthermore, the product is 2.05mm wide. The product complies with automotive standard - aec-q101. The product offers single transistor configuration. It has a maximum of 12 v drain source voltage. The product carries 1v of maximum gate threshold voltage. The package is a sort of u-dfn2020. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 0.3v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 23.4 nc @ 8 v. The product is available in [Cannel Type] channel. Its accurate length is 2.05mm. It contains 6 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 1.7 w maximum power dissipation. It features a maximum gate source voltage of ±8 v. In addition, the height is 0.58mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 12.5 mω maximum drain source resistance.

pdf icon
Datasheet DMN1008UFDF-7(Technical Reference)
