Maximum Continuous Drain Current:
6.6 (State) A, 9.4 (Steady) A
Width:
2.05mm
Automotive Standard:
AEC-Q101
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
3V

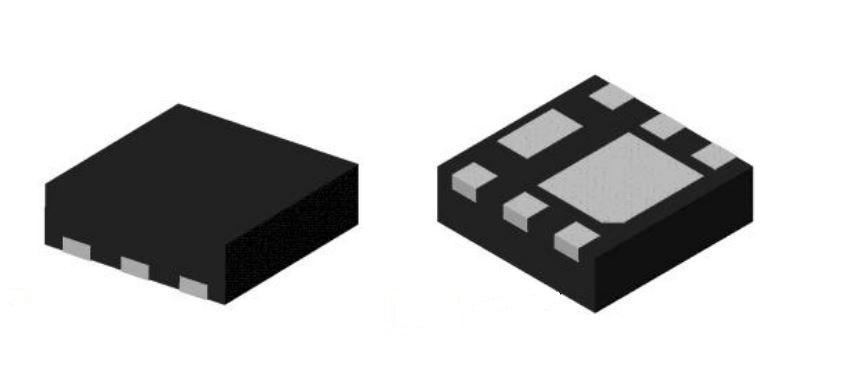

Package Type:
U-DFN2020
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
15.3 nC @ 10V
Channel Type:
N
Length:
2.05mm
Pin Count:
6
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2.3 W
Maximum Gate Source Voltage:
±20 V
Height:
0.6mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1V
Maximum Drain Source Resistance:
27.5 mΩ
