Category:
Power MOSFET
Dimensions:
15.87 x 5.31 x 20.82mm
Maximum Continuous Drain Current:
21 A
Transistor Material:
Si
Width:
5.31mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
4V
Maximum Drain Source Resistance:
180 mΩ
Package Type:

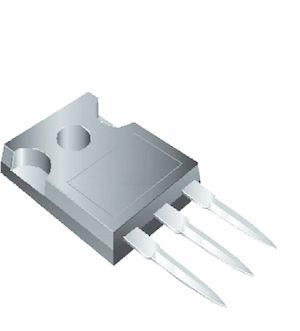

TO-247AC
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
41 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1757 pF @ 100 V
Length:
15.87mm
Pin Count:
3
Forward Transconductance:
16S
Typical Turn-Off Delay Time:
86 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
208 W
Series:
EL-Series
Maximum Gate Source Voltage:
±30 V
Height:
20.82mm
Typical Turn-On Delay Time:
27 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
