Category:
Trench MOSFET
Dimensions:
2.2 x 1.35 x 1mm
Maximum Continuous Drain Current:
200 mA, 350 mA
Transistor Material:
Si
Width:
1.35mm
Automotive Standard:
AEC-Q101
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
1.1V

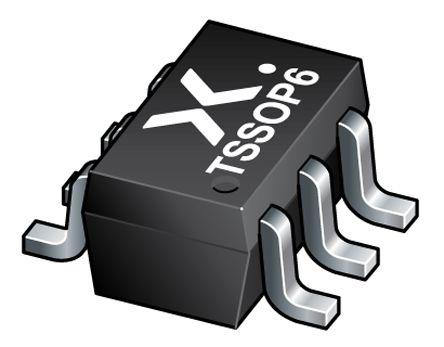

Package Type:
SOT-363 (SC-88)
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
0.6V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
0.52 nC @ 4.5 V, 0.55 nC @ 4.5 V
Channel Type:
N, P
Typical Input Capacitance @ Vds:
31 pF @ -15 V, 34 pF @ 15 V
Length:
2.2mm
Pin Count:
6
Typical Turn-Off Delay Time:
65 ns, 69 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
990 mW
Maximum Gate Source Voltage:
-8 V, +8 V
Height:
1mm
Typical Turn-On Delay Time:
15 ns, 19 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
2.8 Ω, 7.8 Ω
