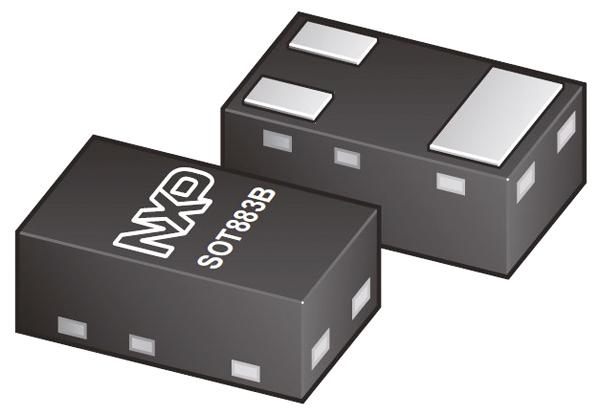

Nexperia PMZB670UPE,315 P-channel MOSFET, 680 mA, 20 V, 3-Pin SOT-883B

PMZB670UPE-315 Nexperia PMZB670UPE,315 P-channel MOSFET, 680 mA, 20 V, 3-Pin SOT-883B
Nexperia

Product Information

Maximum Continuous Drain Current:
680 mA
Transistor Material:
Si
Width:
0.65mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
20 V
Maximum Gate Threshold Voltage:
1.3V
Package Type:
SOT-883B
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
0.76 nC @ 4.5 V
Channel Type:
P
Length:
1.05mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2.7 W
Maximum Gate Source Voltage:
-8 V, +8 V
Height:
0.36mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
850 mΩ
RoHs Compliant
Checking for live stock

This is P-channel MOSFET 680 mA 20 V 3-Pin SOT-883B manufactured by Nexperia. The manufacturer part number is PMZB670UPE,315. While 680 ma of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 0.65mm wide. The product offers single transistor configuration. It has a maximum of 20 v drain source voltage. The product carries 1.3v of maximum gate threshold voltage. The package is a sort of sot-883b. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 0.5v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 0.76 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its accurate length is 1.05mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 2.7 w maximum power dissipation. It features a maximum gate source voltage of -8 v, +8 v. In addition, the height is 0.36mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 850 mω maximum drain source resistance.
