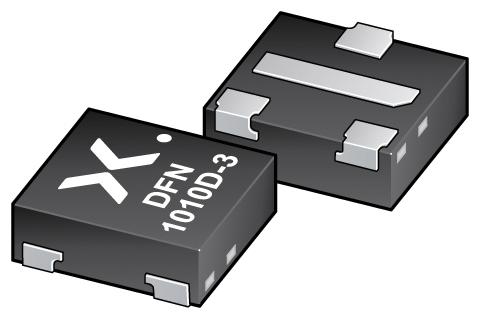

Nexperia PMXB360ENEAZ 3 N-channel MOSFET, 1.1 A, 80 V, 4-Pin DFN1010D-3, SOT1215

PMXB360ENEAZ Nexperia  3 N-channel MOSFET, 1.1 A, 80 V, 4-Pin DFN1010D-3, SOT1215
Nexperia

Product Information

Maximum Continuous Drain Current:
1.1 A
Width:
1.05mm
Automotive Standard:
AEC-Q101
Transistor Configuration:
Single
Maximum Drain Source Voltage:
80 V
Maximum Gate Threshold Voltage:
2.7V
Package Type:
DFN1010D-3, SOT1215
Number of Elements per Chip:
3
Minimum Gate Threshold Voltage:
1.3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
3 nC @ 10 V
Channel Type:
N
Length:
1.15mm
Pin Count:
4
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
6250 mW
Maximum Gate Source Voltage:
20 V
Height:
0.4mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
887 mΩ
RoHs Compliant
Checking for live stock

This is 3 N-channel MOSFET 1.1 A 80 V 4-Pin DFN1010D-3 SOT1215 manufactured by Nexperia. The manufacturer part number is PMXB360ENEAZ. While 1.1 a of maximum continuous drain current. Furthermore, the product is 1.05mm wide. The product complies with automotive standard - aec-q101. The product offers single transistor configuration. It has a maximum of 80 v drain source voltage. The product carries 2.7v of maximum gate threshold voltage. The package is a sort of dfn1010d-3, sot1215. It consists of 3 elements per chip. Whereas its minimum gate threshold voltage includes 1.3v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 3 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 1.15mm. It contains 4 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 6250 mw maximum power dissipation. It features a maximum gate source voltage of 20 v. In addition, the height is 0.4mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 887 mω maximum drain source resistance.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
