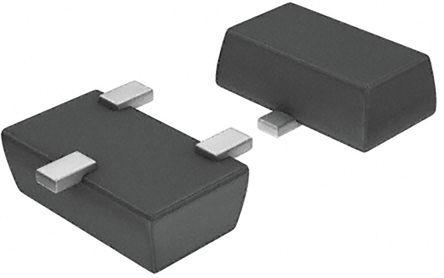

Toshiba SSM3J332R,LF(T P-channel MOSFET, 6 A, 30 V, 3-Pin SOT-23F

SSM3J332R-LF-T Toshiba SSM3J332R,LF(T P-channel MOSFET, 6 A, 30 V, 3-Pin SOT-23F
Toshiba

Product Information

Maximum Drain Source Voltage:
30 V
Typical Gate Charge @ Vgs:
8.2 nC @ -4.5 V nC
Maximum Continuous Drain Current:
6 A
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2 W
Maximum Gate Source Voltage:
+12 V
Maximum Gate Threshold Voltage:
1.2V
Channel Type:
P
Width:
1.8mm
Length:
2.9mm
Minimum Gate Threshold Voltage:
0.5V
Package Type:
SOT-23F
Number of Elements per Chip:
1
Transistor Material:
Si
Maximum Drain Source Resistance:
144 mΩ
Height:
0.8mm
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is P-channel MOSFET 6 A 30 V 3-Pin SOT-23F manufactured by Toshiba. The manufacturer part number is SSM3J332R,LF(T. It has a maximum of 30 v drain source voltage. With a typical gate charge at Vgs includes 8.2 nc @ -4.5 v nc. While 6 a of maximum continuous drain current. The product is available in surface mount configuration. Provides up to 2 w maximum power dissipation. It features a maximum gate source voltage of +12 v. The product carries 1.2v of maximum gate threshold voltage. The product is available in [Cannel Type] channel. Furthermore, the product is 1.8mm wide. Its accurate length is 2.9mm. Whereas its minimum gate threshold voltage includes 0.5v. The package is a sort of sot-23f. It consists of 1 elements per chip. The transistor is manufactured from highly durable si material. It provides up to 144 mω maximum drain source resistance. In addition, the height is 0.8mm. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
SSM3J332R P-channel MOSFET Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SSM3J332R,LF(T on website for other similar products.
We accept all major payment methods for all products including ET16889249. Please check your shopping cart at the time of order.
You can order Toshiba brand products with SSM3J332R,LF(T directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Toshiba SSM3J332R,LF(T P-channel MOSFET, 6 A, 30 V, 3-Pin SOT-23F. You can also check on our website or by contacting our customer support team for further order details on Toshiba SSM3J332R,LF(T P-channel MOSFET, 6 A, 30 V, 3-Pin SOT-23F.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16889249 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Toshiba" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16889249.
Yes. We ship SSM3J332R,LF(T Internationally to many countries around the world.
