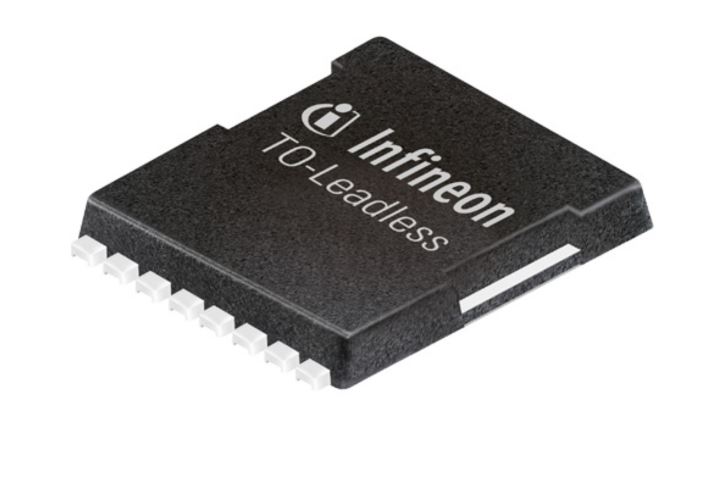

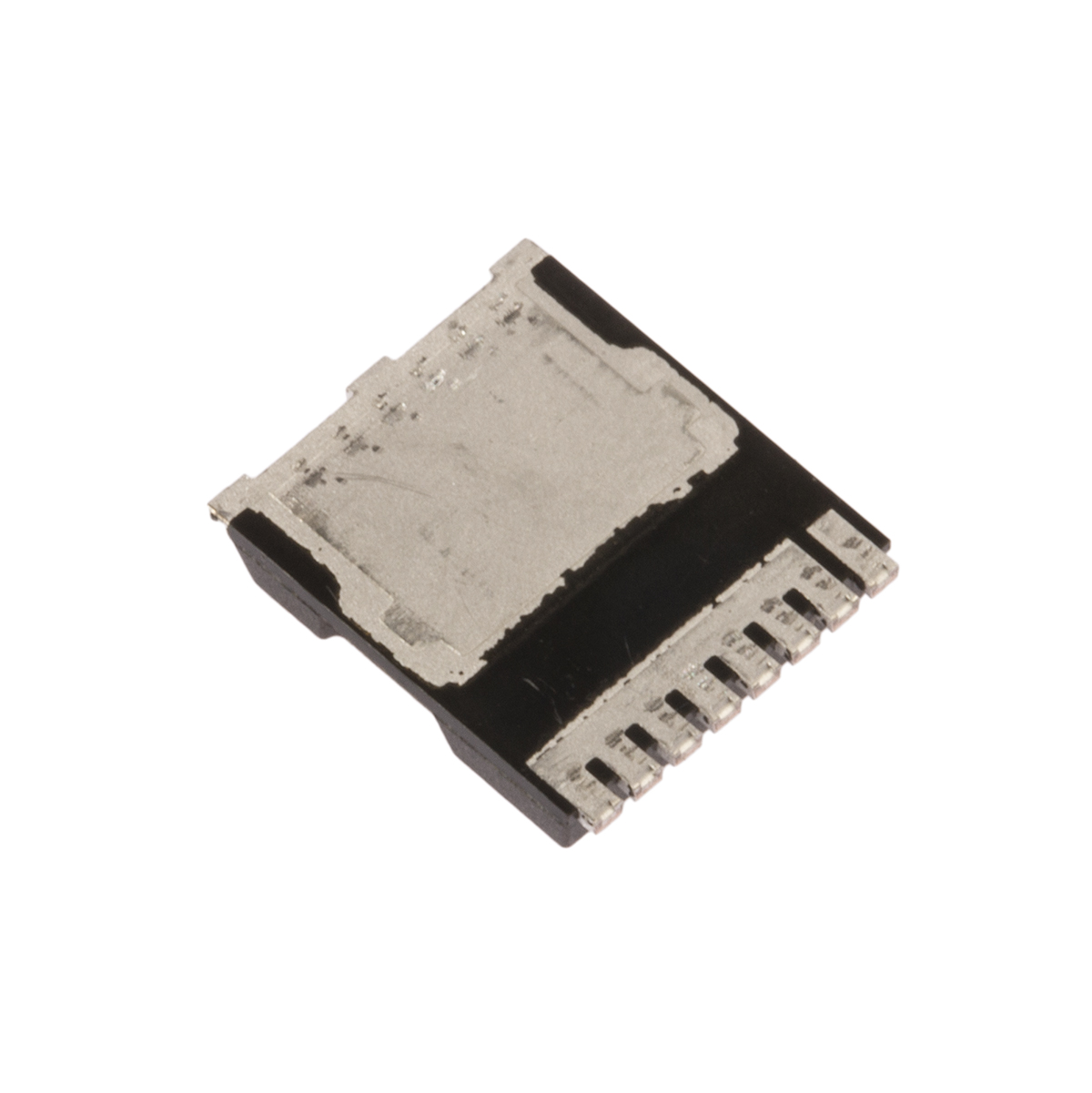

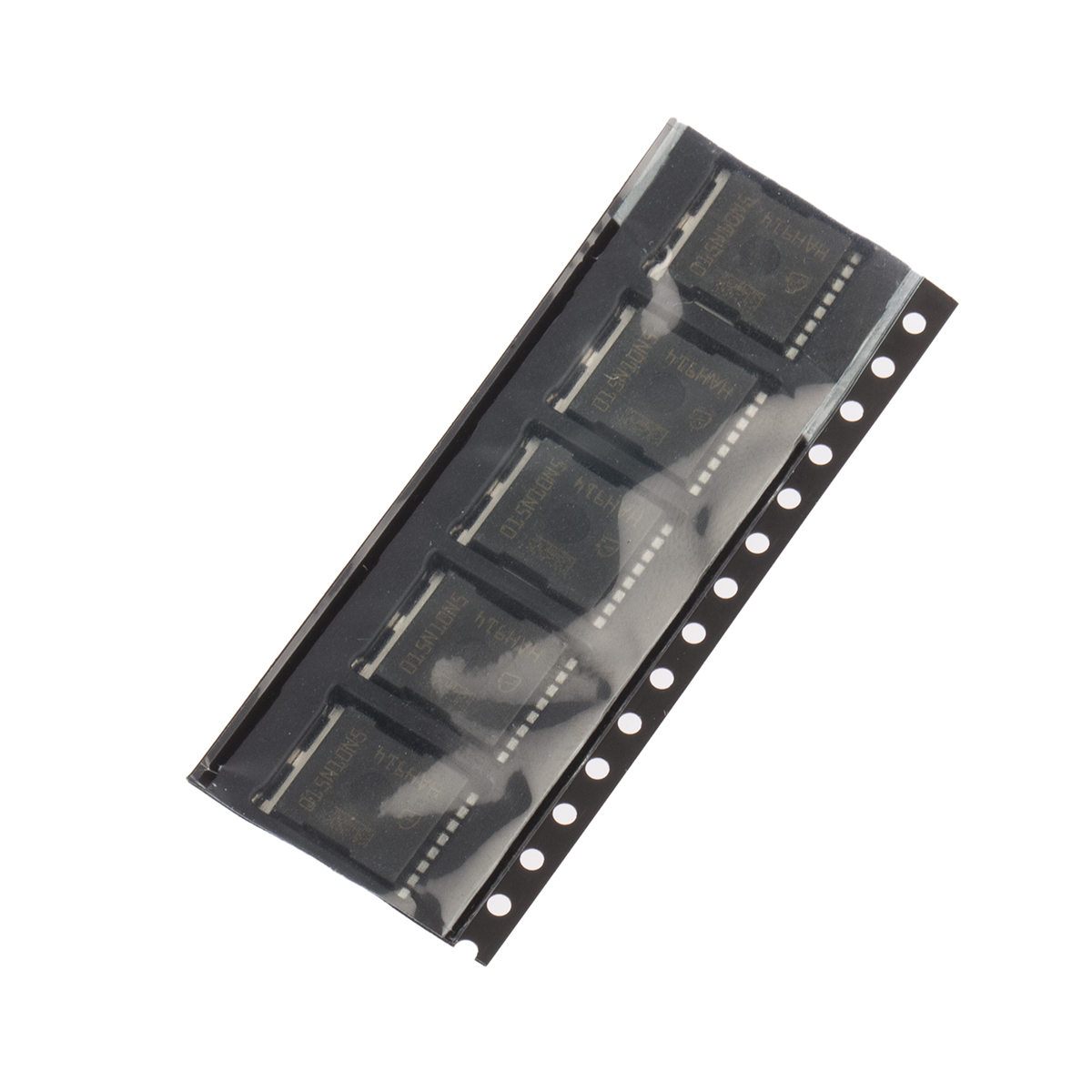

MOSFET N-Ch 100V 300A OptiMOS5 HSOF8

IPT015N10N5ATMA1 MOSFET N-Ch 100V 300A OptiMOS5 HSOF8
Infineon

Product Information

Maximum Continuous Drain Current:
300 A
Width:
10.58mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V
Maximum Gate Threshold Voltage:
3.8V
Package Type:
HSOF-8
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
169 nC @ 10 V
Channel Type:
N
Length:
10.1mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
375 W
Series:
OptiMOS™ 5
Maximum Gate Source Voltage:
20 V
Height:
2.4mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
2 mΩ
RoHs Compliant
Checking for live stock

This is MOSFET N-Ch 100V 300A OptiMOS5 HSOF8 manufactured by Infineon. The manufacturer part number is IPT015N10N5ATMA1. While 300 a of maximum continuous drain current. Furthermore, the product is 10.58mm wide. The product offers single transistor configuration. It has a maximum of 100 v drain source voltage. The product carries 3.8v of maximum gate threshold voltage. The package is a sort of hsof-8. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2.2v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 169 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.1mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 375 w maximum power dissipation. The product optimos™ 5, is a highly preferred choice for users. It features a maximum gate source voltage of 20 v. In addition, the height is 2.4mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 2 mω maximum drain source resistance.

pdf icon
Datasheet(Technical Reference)
