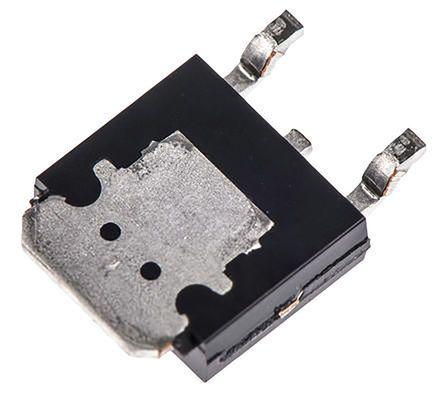

ROHM RSD221N06TL N-channel MOSFET, 22 A, 60 V RSD221N06, 3+Tab-Pin SOT-428

RSD221N06TL ROHM N-channel MOSFET, 22 A, 60 V RSD221N06, 3+Tab-Pin SOT-428
RSD221N06TL
ROHM

Product Information

Maximum Continuous Drain Current:
22 A
Width:
5.8mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
3V
Package Type:
SOT-428
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
30 nC @ 10 V
Channel Type:
N
Length:
6.7mm
Pin Count:
3 + Tab
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
20 W
Series:
RSD221N06
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
2.5mm
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
45 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 22 A 60 V RSD221N06 3+Tab-Pin SOT-428 manufactured by ROHM. The manufacturer part number is RSD221N06TL. While 22 a of maximum continuous drain current. Furthermore, the product is 5.8mm wide. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The product carries 3v of maximum gate threshold voltage. The package is a sort of sot-428. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 30 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 6.7mm. It contains 3 + tab pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 20 w maximum power dissipation. The product rsd221n06, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 2.5mm. Its forward diode voltage is 1.2v . It provides up to 45 mω maximum drain source resistance.

pdf icon
RSD221N06, N-Channel Power MOSFET (60V, 22A)(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
