Maximum Continuous Drain Current:
6.8 A, 9 A
Width:
3.15mm
Transistor Configuration:
Dual Base
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2 V, 2.4 V

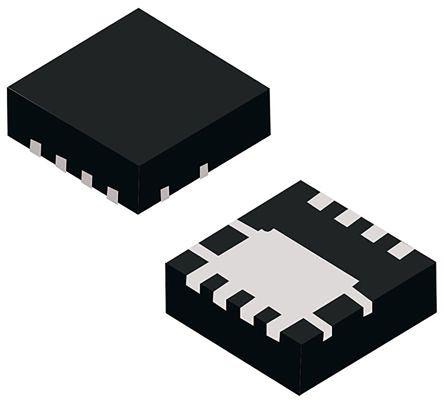

Package Type:
PDI3333
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1.2 V, 1.4 V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
19.7 nC @ 15 V, 21 nC @ 15 V
Channel Type:
N, P
Length:
3.15mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
2 W
Series:
DMC3016LNS
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.8mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
20 mΩ, 38 mΩ
