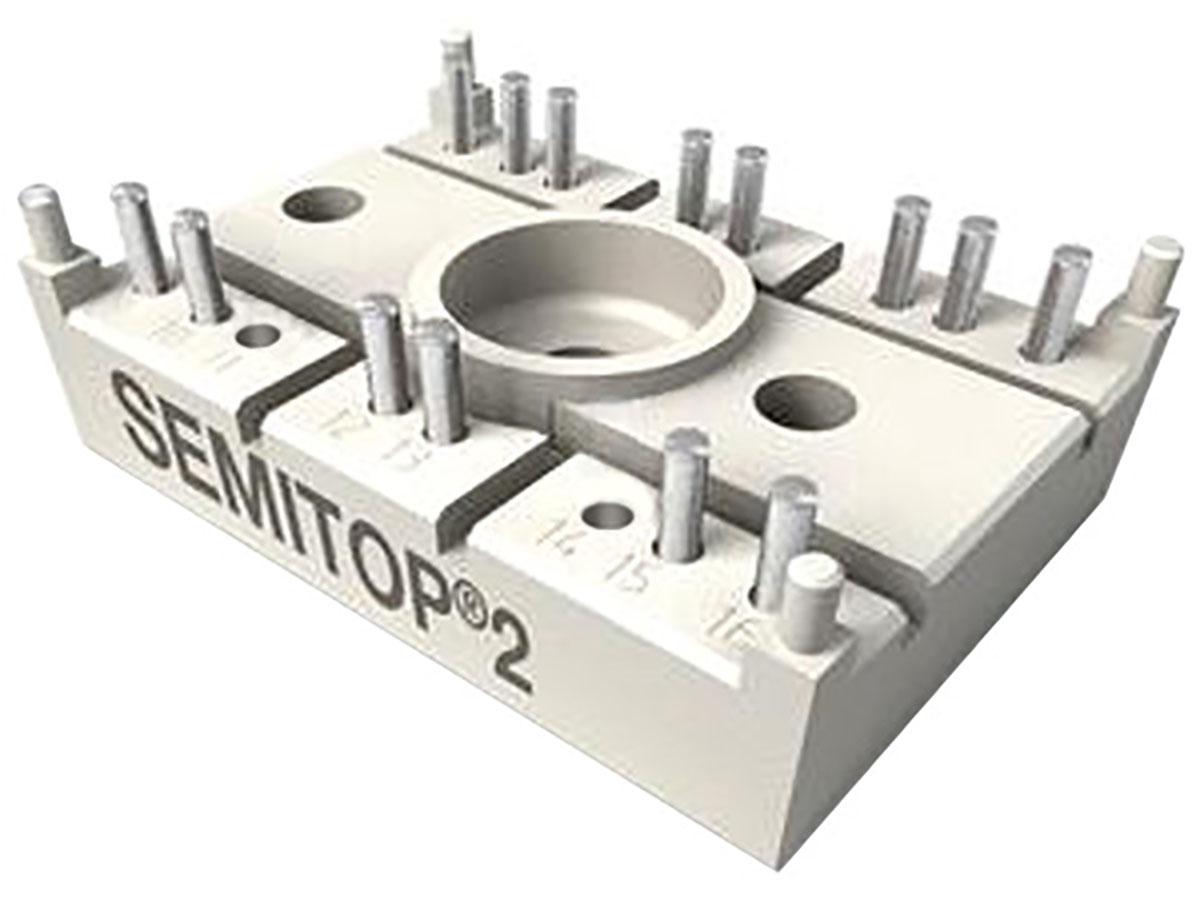

Semikron SK85MH10T Quad N-channel MOSFET, 80 A, 100 V SK85MH, 16-Pin SEMITOP2

SK85MH10T Semikron Quad N-channel MOSFET, 80 A, 100 V SK85MH, 16-Pin SEMITOP2
Semikron

Product Information

Maximum Drain Source Voltage:
100 V
Mounting Type:
Screw Mount
Channel Mode:
Enhancement
Maximum Gate Source Voltage:
-20 V, +20 V
Series:
SK85MH
Maximum Gate Threshold Voltage:
3.3V
Height:
12mm
Width:
28mm
Length:
41mm
Maximum Drain Source Resistance:
13.5 mΩ
Package Type:
SEMITOP2
Number of Elements per Chip:
4
Minimum Operating Temperature:
-40 °C
Maximum Continuous Drain Current:
80 A
Minimum Gate Threshold Voltage:
2.5V
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
16
Transistor Configuration:
Full Bridge
RoHs Compliant
Checking for live stock

This is Quad N-channel MOSFET 80 A 100 V SK85MH 16-Pin SEMITOP2 manufactured by Semikron. The manufacturer part number is SK85MH10T. It has a maximum of 100 v drain source voltage. The product is available in screw mount configuration. The product carries enhancement channel mode. It features a maximum gate source voltage of -20 v, +20 v. The product sk85mh, is a highly preferred choice for users. The product carries 3.3v of maximum gate threshold voltage. In addition, the height is 12mm. Furthermore, the product is 28mm wide. Its accurate length is 41mm. It provides up to 13.5 mω maximum drain source resistance. The package is a sort of semitop2. It consists of 4 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. While 80 a of maximum continuous drain current. Whereas its minimum gate threshold voltage includes 2.5v. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 16 pins. The product offers full bridge transistor configuration.

pdf icon
SK85MH10T Semittop2 MOSFET Module(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search SK85MH10T on website for other similar products.
We accept all major payment methods for all products including ET16801712. Please check your shopping cart at the time of order.
You can order Semikron brand products with SK85MH10T directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in MOSFETs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Semikron SK85MH10T Quad N-channel MOSFET, 80 A, 100 V SK85MH, 16-Pin SEMITOP2. You can also check on our website or by contacting our customer support team for further order details on Semikron SK85MH10T Quad N-channel MOSFET, 80 A, 100 V SK85MH, 16-Pin SEMITOP2.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16801712 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Semikron" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16801712.
Yes. We ship SK85MH10T Internationally to many countries around the world.
