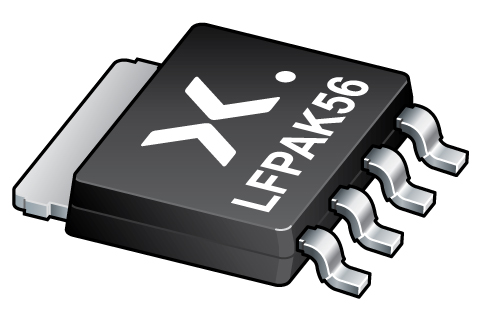

Nexperia BUK9Y29-40E,115 N-channel MOSFET, 25 A, 40 V, 4+Tab-Pin LFPAK56, Power SO8

BUK9Y29-40E-115 Nexperia BUK9Y29-40E,115 N-channel MOSFET, 25 A, 40 V, 4+Tab-Pin LFPAK56, Power SO8
Nexperia

Product Information

Maximum Continuous Drain Current:
25 A
Width:
4.1mm
Automotive Standard:
AEC-Q101
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
2.45V
Package Type:
LFPAK56
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
0.5V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
5 nC @ 10 V
Channel Type:
N
Length:
5mm
Pin Count:
4
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
37 W
Maximum Gate Source Voltage:
15 V
Height:
1.05mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
58.3 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 25 A 40 V 4+Tab-Pin LFPAK56 Power SO8 manufactured by Nexperia. The manufacturer part number is BUK9Y29-40E,115. While 25 a of maximum continuous drain current. Furthermore, the product is 4.1mm wide. The product complies with automotive standard - aec-q101. The product offers single transistor configuration. It has a maximum of 40 v drain source voltage. The product carries 2.45v of maximum gate threshold voltage. The package is a sort of lfpak56. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 0.5v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 5 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 5mm. It contains 4 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 37 w maximum power dissipation. It features a maximum gate source voltage of 15 v. In addition, the height is 1.05mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 58.3 mω maximum drain source resistance.
