Category:
Switching Regulator
Dimensions:
6.65 x 2.3 x 7.12mm
Maximum Continuous Drain Current:
6.2 A
Transistor Material:
Si
Width:
2.3mm
Maximum Drain Source Voltage:
600 V
Maximum Gate Threshold Voltage:
3.7V

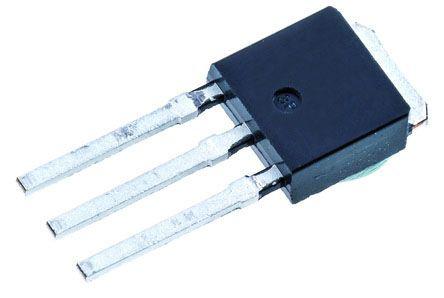

Package Type:
IPAK (TO-251)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.7V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
12 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
390 pF @ 300 V
Length:
6.65mm
Pin Count:
3
Typical Turn-Off Delay Time:
55 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
60 W
Series:
DTMOSIV
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
7.12mm
Typical Turn-On Delay Time:
40 ns
Forward Diode Voltage:
1.7V
Maximum Drain Source Resistance:
820 mΩ
