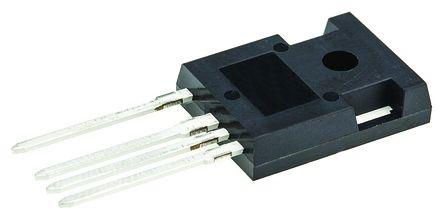

Toshiba TK25Z60X,S1F(S N-channel MOSFET, 25 A, 600 V DTMOSIV-H, 4-Pin TO-247

TK25Z60X-S1F-S Toshiba TK25Z60X,S1F(S N-channel MOSFET, 25 A, 600 V DTMOSIV-H, 4-Pin TO-247
Toshiba

Product Information

Maximum Drain Source Voltage:
600 V
Typical Gate Charge @ Vgs:
40 nC @ 10 V
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
180 W
Series:
DTMOSIV-H
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
20.95mm
Width:
5.02mm
Length:
15.94mm
Maximum Drain Source Resistance:
125 mΩ
Package Type:
TO-247
Number of Elements per Chip:
1
Maximum Continuous Drain Current:
25 A
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
4
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 25 A 600 V DTMOSIV-H 4-Pin TO-247 manufactured by Toshiba. The manufacturer part number is TK25Z60X,S1F(S. It has a maximum of 600 v drain source voltage. With a typical gate charge at Vgs includes 40 nc @ 10 v. The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 180 w maximum power dissipation. The product dtmosiv-h, is a highly preferred choice for users. It features a maximum gate source voltage of -30 v, +30 v. In addition, the height is 20.95mm. Furthermore, the product is 5.02mm wide. Its accurate length is 15.94mm. It provides up to 125 mω maximum drain source resistance. The package is a sort of to-247. It consists of 1 elements per chip. While 25 a of maximum continuous drain current. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 4 pins.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
TK25Z60X,S1F(S(Technical Reference)
