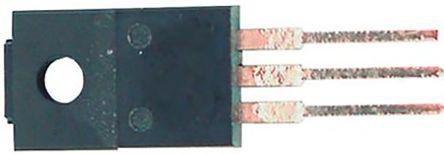

Infineon SPA12N50C3XKSA1 N-channel MOSFET, 11.6 A, 560 V CoolMOS C3, 3-Pin TO-220FP

SPA12N50C3XKSA1 Infineon N-channel MOSFET, 11.6 A, 560 V CoolMOS C3, 3-Pin TO-220FP
Infineon

Product Information

Maximum Continuous Drain Current:
11.6 A
Transistor Material:
Si
Width:
4.85mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
560 V
Maximum Gate Threshold Voltage:
3.9V
Maximum Drain Source Resistance:
380 mΩ
Package Type:
TO-220FP
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
49 nC @ 10 V
Channel Type:
N
Length:
10.65mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
33 W
Series:
CoolMOS C3
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
9.83mm
Minimum Operating Temperature:
-55 °C
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 11.6 A 560 V CoolMOS C3 3-Pin TO-220FP manufactured by Infineon. The manufacturer part number is SPA12N50C3XKSA1. While 11.6 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.85mm wide. The product offers single transistor configuration. It has a maximum of 560 v drain source voltage. The product carries 3.9v of maximum gate threshold voltage. It provides up to 380 mω maximum drain source resistance. The package is a sort of to-220fp. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2.1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 49 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.65mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 33 w maximum power dissipation. The product coolmos c3, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 9.83mm. Whereas, the minimum operating temperature of the product is -55 °c.

pdf icon
SPP12N50C3, SPI12N50C3, SPA12N50C3, CoolMOS Power Transistor(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
