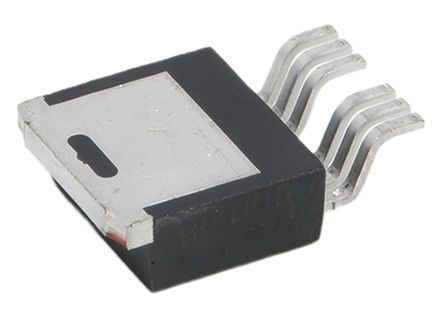

Infineon IRLS3034TRL7PP N-channel MOSFET, 380 A, 40 V HEXFET, 7+Tab-Pin D2PAK

IRLS3034TRL7PP Infineon  N-channel MOSFET, 380 A, 40 V HEXFET, 7+Tab-Pin D2PAK
IRLS3034TRL7PP
Infineon

Product Information

Maximum Continuous Drain Current:
380 A
Width:
4.83mm
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
2.5V
Package Type:
D2PAK-7
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
120 nC @ 4.5 V
Channel Type:
N
Length:
10.67mm
Pin Count:
7
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
380 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
9.65mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.3V
Maximum Drain Source Resistance:
1.7 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 380 A 40 V HEXFET 7+Tab-Pin D2PAK manufactured by Infineon. The manufacturer part number is IRLS3034TRL7PP. While 380 a of maximum continuous drain current. Furthermore, the product is 4.83mm wide. It has a maximum of 40 v drain source voltage. The product carries 2.5v of maximum gate threshold voltage. The package is a sort of d2pak-7. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 120 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its accurate length is 10.67mm. It contains 7 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 380 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 9.65mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.3v . It provides up to 1.7 mω maximum drain source resistance.
