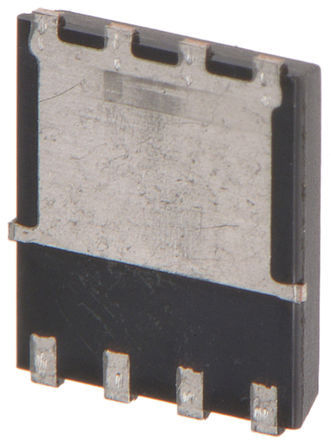

Infineon IRFH5015TRPBF N-channel MOSFET, 44 A, 150 V HEXFET, 8-Pin PQFN

IRFH5015TRPBF Infineon  N-channel MOSFET, 44 A, 150 V HEXFET, 8-Pin PQFN
IRFH5015TRPBF
Infineon

Product Information

Maximum Continuous Drain Current:
44 A
Width:
5mm
Maximum Drain Source Voltage:
150 V
Maximum Gate Threshold Voltage:
5V
Package Type:
PQFN 5 x 6
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
36 nC @ 10 V
Channel Type:
N
Length:
6mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
156 W
Series:
HEXFET
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.85mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.3V
Maximum Drain Source Resistance:
31 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 44 A 150 V HEXFET 8-Pin PQFN manufactured by Infineon. The manufacturer part number is IRFH5015TRPBF. While 44 a of maximum continuous drain current. Furthermore, the product is 5mm wide. It has a maximum of 150 v drain source voltage. The product carries 5v of maximum gate threshold voltage. The package is a sort of pqfn 5 x 6. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 3v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 36 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 6mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 156 w maximum power dissipation. The product hexfet, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 0.85mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.3v . It provides up to 31 mω maximum drain source resistance.
