Category:
Power MOSFET
Dimensions:
10 x 4.4 x 15.65mm
Maximum Continuous Drain Current:
45 A
Width:
4.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2V

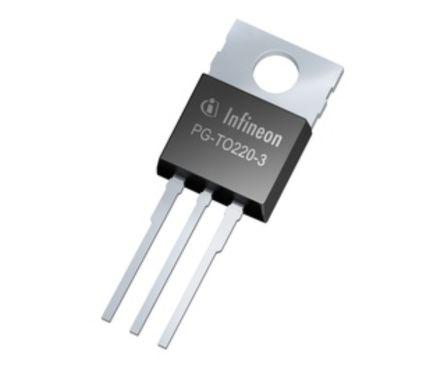

Package Type:
TO-220
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
42 nC @ 10 V
Channel Type:
P
Typical Input Capacitance @ Vds:
2900 pF @ -25 V
Length:
10mm
Pin Count:
3 + Tab
Typical Turn-Off Delay Time:
45 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
58 W
Series:
IPP45P03P4L-11
Maximum Gate Source Voltage:
5 V
Height:
15.65mm
Typical Turn-On Delay Time:
7 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.3V
Maximum Drain Source Resistance:
18.7 mΩ
