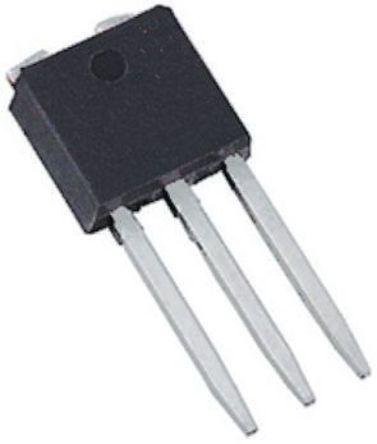

Infineon IPI90R500C3XKSA1 N-channel MOSFET, 11 A, 900 V CoolMOS C3, 3-Pin I2PAK

IPI90R500C3XKSA1 Infineon  N-channel MOSFET, 11 A, 900 V CoolMOS C3, 3-Pin I2PAK
Infineon

Product Information

Maximum Continuous Drain Current:
11 A
Transistor Material:
Si
Width:
4.5mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
900 V
Package Type:
I2PAK (TO-262)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
68 nC @ 10 V
Channel Type:
N
Length:
10.2mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
156 W
Series:
CoolMOS C3
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
9.45mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
Maximum Drain Source Resistance:
500 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 11 A 900 V CoolMOS C3 3-Pin I2PAK manufactured by Infineon. The manufacturer part number is IPI90R500C3XKSA1. While 11 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.5mm wide. The product offers single transistor configuration. It has a maximum of 900 v drain source voltage. The package is a sort of i2pak (to-262). It consists of 1 elements per chip. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 68 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.2mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 156 w maximum power dissipation. The product coolmos c3, is a highly preferred choice for users. It features a maximum gate source voltage of -30 v, +30 v. In addition, the height is 9.45mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 1.2v . It provides up to 500 mω maximum drain source resistance.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
IPI90R500C3 CoolMOS C3 Power Transistor(Technical Reference)
