Category:
Power MOSFET
Dimensions:
10.36 x 4.57 x 9.45mm
Maximum Continuous Drain Current:
11 A
Transistor Material:
Si
Width:
4.57mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
700 V
Maximum Gate Threshold Voltage:
4.5V

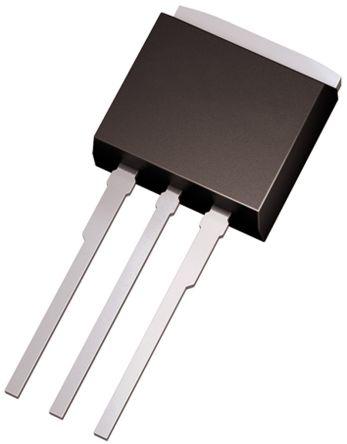

Package Type:
I2PAK (TO-262)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
41 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1100 pF @ 100 V
Length:
10.36mm
Pin Count:
3
Typical Turn-Off Delay Time:
45 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
104.2 W
Series:
CoolMOS CFD
Maximum Gate Source Voltage:
-30 V, +30 V
Height:
9.45mm
Typical Turn-On Delay Time:
11 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
310 mΩ
