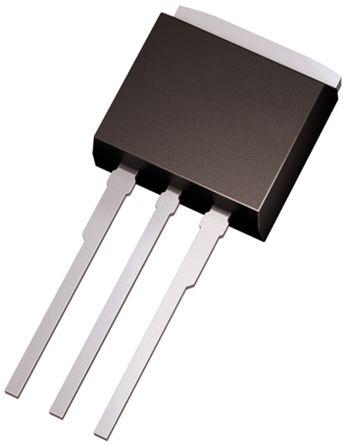

Infineon IPI024N06N3GXKSA1 N-channel MOSFET, 120 A, 60 V OptiMOS 3, 3-Pin I2PAK

IPI024N06N3GXKSA1 Infineon  N-channel MOSFET, 120 A, 60 V OptiMOS 3, 3-Pin I2PAK
Infineon

Product Information

Maximum Continuous Drain Current:
120 A
Transistor Material:
Si
Width:
4.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
4V
Package Type:
I2PAK (TO-262)
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
206 nC @ 10 V
Channel Type:
N
Length:
10mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
250 W
Series:
OptiMOS 3
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
9.25mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
2.4 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 120 A 60 V OptiMOS 3 3-Pin I2PAK manufactured by Infineon. The manufacturer part number is IPI024N06N3GXKSA1. While 120 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.4mm wide. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The product carries 4v of maximum gate threshold voltage. The package is a sort of i2pak (to-262). It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 206 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 250 w maximum power dissipation. The product optimos 3, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 9.25mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 2.4 mω maximum drain source resistance.
