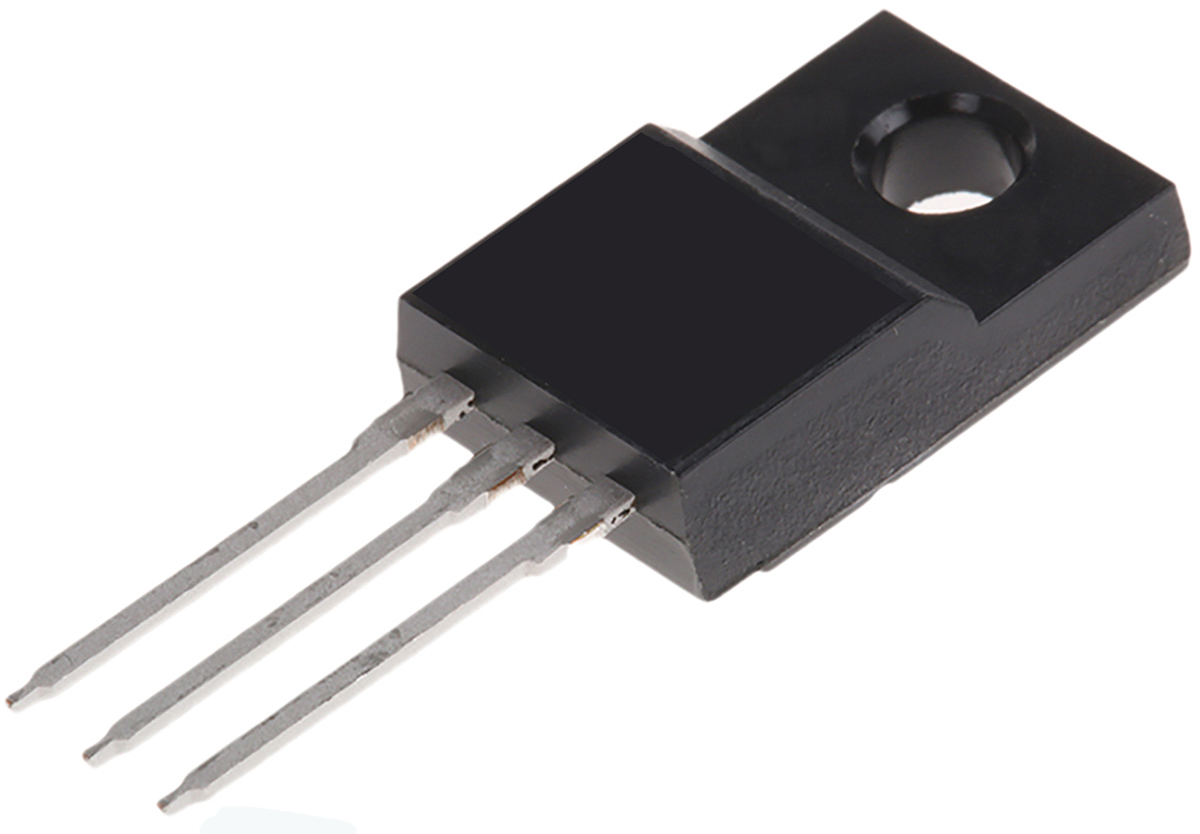

Infineon IPA60R190E6XKSA1 N-channel MOSFET, 20 A, 650 V CoolMOS E6, 3-Pin TO-220FP

IPA60R190E6XKSA1 Infineon  N-channel MOSFET, 20 A, 650 V CoolMOS E6, 3-Pin TO-220FP
Infineon

Product Information

Maximum Continuous Drain Current:
20 A
Transistor Material:
Si
Width:
4.9mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
650 V
Maximum Gate Threshold Voltage:
3.5V
Package Type:
TO-220 FP
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2.5V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
63 nC @ 10 V
Channel Type:
N
Length:
10.65mm
Pin Count:
3
Channel Mode:
Enhancement
Mounting Type:
Through Hole
Maximum Power Dissipation:
34 W
Series:
CoolMOS E6
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
16.15mm
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
0.9V
Maximum Drain Source Resistance:
440 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 20 A 650 V CoolMOS E6 3-Pin TO-220FP manufactured by Infineon. The manufacturer part number is IPA60R190E6XKSA1. While 20 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 4.9mm wide. The product offers single transistor configuration. It has a maximum of 650 v drain source voltage. The product carries 3.5v of maximum gate threshold voltage. The package is a sort of to-220 fp. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2.5v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 63 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 10.65mm. It contains 3 pins. The product carries enhancement channel mode. The product is available in through hole configuration. Provides up to 34 w maximum power dissipation. The product coolmos e6, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 16.15mm. Whereas, the minimum operating temperature of the product is -55 °c. Its forward diode voltage is 0.9v . It provides up to 440 mω maximum drain source resistance.

pdf icon
IPx60R190E6 600V CoolMOS E6 Power Transistor(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
