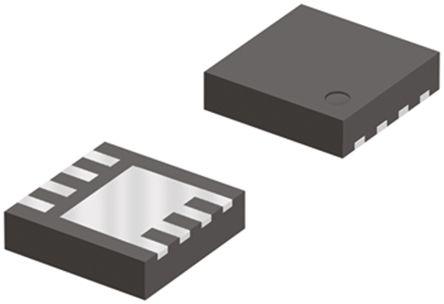

Infineon BSZ130N03MSGATMA1 N-channel MOSFET, 35 A, 30 V OptiMOS 3, 8-Pin TSDSON

BSZ130N03MSGATMA1 Infineon  N-channel MOSFET, 35 A, 30 V OptiMOS 3, 8-Pin TSDSON
Infineon

Product Information

Maximum Continuous Drain Current:
35 A
Transistor Material:
Si
Width:
3.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
2V
Package Type:
TSDSON
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
6.1 nC @ 4.5 V
Channel Type:
N
Length:
3.4mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
25 W
Series:
OptiMOS 3
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.1mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
15 mΩ
Checking for live stock

This is N-channel MOSFET 35 A 30 V OptiMOS 3 8-Pin TSDSON manufactured by Infineon. The manufacturer part number is BSZ130N03MSGATMA1. While 35 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.4mm wide. The product offers single transistor configuration. It has a maximum of 30 v drain source voltage. The product carries 2v of maximum gate threshold voltage. The package is a sort of tsdson. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 6.1 nc @ 4.5 v. The product is available in [Cannel Type] channel. Its accurate length is 3.4mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 25 w maximum power dissipation. The product optimos 3, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 15 mω maximum drain source resistance.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
BSZ130N03MS G, OptiMOS3 M-Series Power-MOSFET(Technical Reference)
