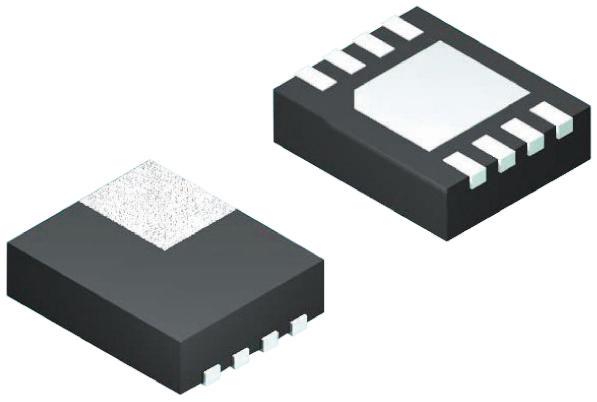

Infineon BSZ097N04LSGATMA1 N-channel MOSFET, 40 A, 40 V OptiMOS 3, 8-Pin TSDSON

BSZ097N04LSGATMA1 Infineon  N-channel MOSFET, 40 A, 40 V OptiMOS 3, 8-Pin TSDSON
Infineon

Product Information

Maximum Continuous Drain Current:
40 A
Width:
3.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
2V
Package Type:
TSDSON
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
18 nC @ 10 V
Channel Type:
N
Length:
3.4mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
35 W
Series:
OptiMOS™ 3
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
1.1mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
14.2 mΩ
RoHs Compliant
Checking for live stock

This is N-channel MOSFET 40 A 40 V OptiMOS 3 8-Pin TSDSON manufactured by Infineon. The manufacturer part number is BSZ097N04LSGATMA1. While 40 a of maximum continuous drain current. Furthermore, the product is 3.4mm wide. The product offers single transistor configuration. It has a maximum of 40 v drain source voltage. The product carries 2v of maximum gate threshold voltage. The package is a sort of tsdson. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1.2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 18 nc @ 10 v. The product is available in [Cannel Type] channel. Its accurate length is 3.4mm. It contains 8 pins. The product carries enhancement channel mode. The product is available in surface mount configuration. Provides up to 35 w maximum power dissipation. The product optimos™ 3, is a highly preferred choice for users. It features a maximum gate source voltage of -20 v, +20 v. In addition, the height is 1.1mm. Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 14.2 mω maximum drain source resistance.

pdf icon
MOSFET N-ch 40V 40A OptiMOS3 Sw. TSDSON8(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
